| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Input Voltage | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Current | |
| Output Voltage | |
| Power (Watts) | |
| Power Rating | |
| Standard Number | |
| Type | |
| Voltage | |
| Weight | |
| Width |

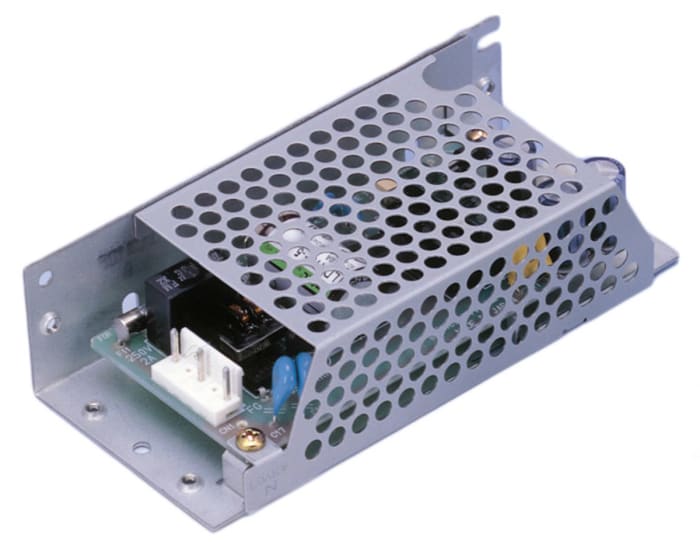

The Cosel LDA10F-12-SN is a switch mode power supply (SMPS) designed for AC to DC conversion. It features a 12V dc output voltage with a maximum current of 900mA, delivering a total power of 10.8W.
This converter operates with a wide input voltage range of 85-264V AC, making it suitable for various global applications. It has an efficiency of 74% and provides 3kV of isolation voltage. The operating temperature range is -10°C to 60°C with derating.
Designed for easy integration, the LDA10F-12-SN comes in an enclosed package and is intended for chassis mounting. Its dimensions are 125mm in length, 57mm in width, and 32mm in height. The unit weighs 75g.
Compliance includes UL60950-1, EN60950-1, EN50178, and CSA C22.2 No.60950-1 standards, complying with DEN-AN and IEC60950-1. It is also RoHS3 compliant, has an MSL of 1, and is REACH unaffected.
12V DC at 900mA.
85-264 VAC or 110-370 VDC.
-10°C to 60°C (with derating).
3 kV.
Chassis mount, enclosed package.
74%.
UL60950-1.
