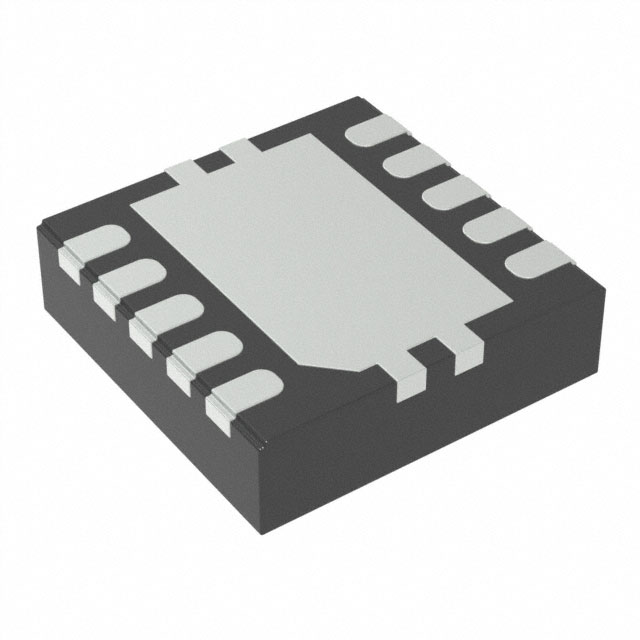

LD59150PURY The STMicroelectronics LD59150PURY is a linear LDO voltage regulator with an adjustable output voltage and a 1.5A output current. It is designed for surface mount applications.
Mfr Part #:

LD59150PURY

Available from 2 distributors
Mfr Name: STMicroelectronics
STMicroelectronics
The STMicroelectronics LD59150PURY is a linear LDO voltage regulator with an adjustable output voltage and a 1.5A output current. It is designed for surface mount applications.
✓ Total Stock: 11,000 pcs
$ Price Range: $0.28

LD59150PURY Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Fe Components ✓
Non-Authorised Inventory information
8,000 pcs
On Request
8000 pcs On Request 1 On Request On Request On Request On Request On Request
Risen Electronics ✓
Non-Authorised Inventory information
3,000 pcs
On Request
3000 pcs On Request 1 On Request On Request On Request On Request 2026-02-16 21:33:16
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

LD59150PURY Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Control Features
Current
Failure Rate
Industrial Grade
Lead Style
Mounting Style
Mounting Type
Number of Outputs
Number of Regulators
Operating Temperature
Output Configuration
Output Current
Output Type
Output Voltage
PSRR
Product Type
Protection Features
Supplier Device Package
Type
Voltage
Voltage Dropout (Max)
View Similar Products (0)

LD59150PURY Description

Short technical summary and product information.

The STMicroelectronics LD59150PURY is a versatile LDO (Low-Dropout) linear voltage regulator. It offers an adjustable output voltage and can supply up to 1.5A of current.



Key electrical specifications include a minimum input voltage of 0.8V and a maximum of 5.5V, with a typical dropout voltage of 65mV at 1.5A. The device operates across a wide temperature range from -40°C to 125°C.



This regulator is available in a 10-DFN package with a surface mount, wettable flank mounting type, suitable for compact designs. It includes protection features such as current limit and thermal shutdown, along with control features like Enable and Power Good signals.

LD59150PURY Quick Information

Product Type: LDO Voltage Regulator
Series: LD59150
Canonical Name: STMicroelectronics LD59150PURY LDO Voltage Regulator
Subcategory: PMIC-Power Management ICs

LD59150PURY Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Yes

LD59150PURY Estimated Pricing

Qty Low High
1+ $0.28 $0.28

Estimated market price range - modelled values for guidance only, not live distributor offers.

LD59150PURY Features

  • 1.5A output current capability.
  • Adjustable output voltage.
  • Wide input voltage range.
  • Low dropout voltage.
  • Surface mount 10-DFN package.

LD59150PURY Applications

  • Power supply regulation.
  • Embedded system power.
  • Portable electronic devices.
  • Low power applications.

LD59150PURY FAQs

7 frequently asked questions generated from this part’s specifications.
What is the output voltage range of the LD59150PURY?

The output voltage range is adjustable from 0.8V to 3.6V.

What is the typical dropout voltage at 1.5A load?

The typical dropout voltage is 65mV at 1.5A load.

What is the operating temperature range?

The junction operating temperature range is -40°C to +125°C.

What package options are available for the LD59150PURY?

The device is available in a 10-DFN package (10-VFDFN Exposed Pad).

Does the LD59150PURY have overcurrent protection?

Yes, it features current limit protection.

What is the input voltage range?

The input voltage range is from 0.8V to 5.5V.

What is the PSRR specification?

The typical PSRR is 70dB at 1kHz decreasing to 30dB at 300kHz.
