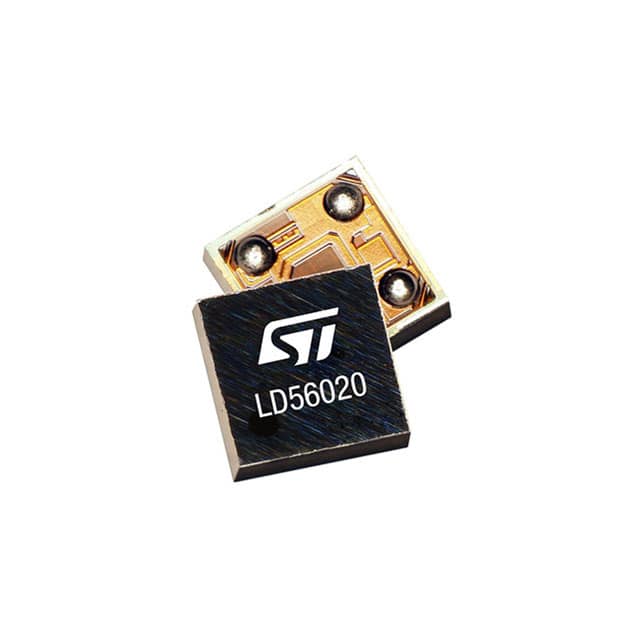

LD56020J100R The STMicroelectronics LD56020J100R is a linear low-dropout voltage regulator. It offers a fixed 1V output voltage and a maximum output current of 200mA.
Mfr Part #:

LD56020J100R

Available from 2 distributors
Mfr Name: STMicroelectronics
STMicroelectronics
The STMicroelectronics LD56020J100R is a linear low-dropout voltage regulator. It offers a fixed 1V output voltage and a maximum output current of 200mA.
✓ Total Stock: 20,000 pcs
$ Price Range: $0.28

LD56020J100R Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Fe Components ✓
Non-Authorised Inventory information
10,000 pcs
On Request
10000 pcs On Request 1 On Request On Request On Request On Request On Request
Risen Electronics ✓
Non-Authorised Inventory information
10,000 pcs
On Request
10000 pcs On Request 1 On Request On Request On Request On Request 2026-02-16 21:33:16
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

LD56020J100R Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Control Features
Current
Input Voltage
Maximum Input Voltage
Mounting Type
Number of Regulators
Operating Temperature
Output Configuration
Output Current
Output Type
Output Voltage
PSRR
Protection Features
Supplier Device Package
Supplier Package
Voltage
Voltage Dropout (Max)
View Similar Products (0)

LD56020J100R Description

Short technical summary and product information.

The STMicroelectronics LD56020J100R is a linear low-dropout (LDO) voltage regulator designed for low input voltage applications. It provides a stable 1V fixed output voltage with a maximum output current capability of 200mA.



Key electrical specifications include an input voltage range of 1.1V to 5.5V and a low dropout voltage of 0.09V at 50mA. The device features a quiescent current of 20µA typical and offers protection against over-temperature conditions. Its PSRR is rated at 55dB typical at 100Hz, improving noise rejection.



This LDO regulator is housed in a compact 4-XFBGA package, suitable for surface mount applications. The operating temperature range is -40°C to 125°C, making it suitable for industrial environments. The device includes an enable control feature.



With its low quiescent current and compact package, the LD56020J100R is well-suited for power management in various electronic devices where space and power efficiency are critical.

LD56020J100R Quick Information

Product Type: LDO Voltage Regulator
Canonical Name: LD56020J100R LDO Voltage Regulator
Subcategory: Linear Voltage Regulators

LD56020J100R Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

LD56020J100R Estimated Pricing

Qty Low High
1+ $0.28 $0.28

Estimated market price range - modelled values for guidance only, not live distributor offers.

LD56020J100R Features

  • Fixed 1V output voltage.
  • 200mA maximum output current.
  • Low dropout voltage.
  • Wide operating temperature range.
  • Compact 4-XFBGA package.

LD56020J100R Applications

  • Power management in portable devices.
  • Low voltage power supply applications.
  • Noise sensitive electronic circuits.
  • Space constrained designs.

LD56020J100R FAQs

7 frequently asked questions generated from this part’s specifications.
What is the input voltage range of the LD56020J100R?

1.1V to 5.5V.

What is the output voltage and current capability?

Fixed 1V output, 200mA maximum.

What is the dropout voltage at full load?

190mV maximum at 200mA.

What is the quiescent current of this regulator?

Typical 20µA.

What package is the LD56020J100R available in?

4-XFBGA (4-FlipChip 0.69x0.69mm) surface mount.

What is the operating temperature range?

-40°C to 125°C.

What protection features does it include?

Over-temperature, current limit, short circuit, and thermal shutdown.
