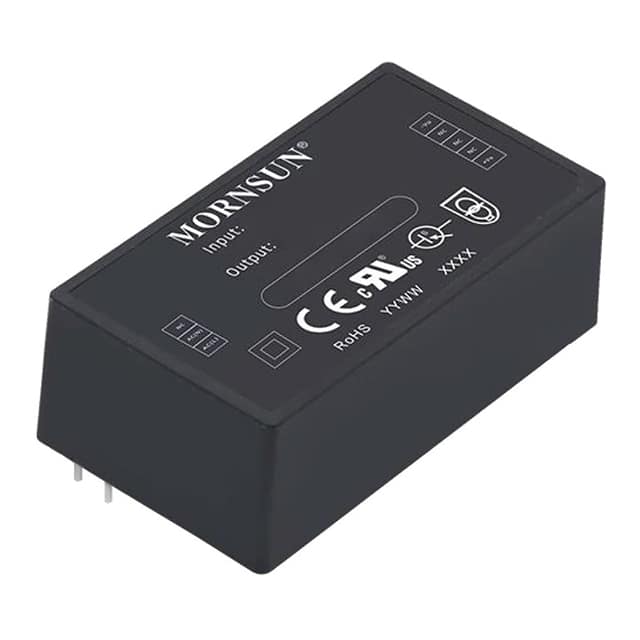

This AC/DC converter from Morning Star Industrial, part number LD30-23B05R2, offers a power output of 30W and a current rating of 6A. It operates within a wide input voltage range of 85 to 305 VAC or 100 to 430 VDC, making it suitable for various applications including household appliances and ITE commercial equipment.
The converter is designed as an enclosed unit with a 4-DIP module package and requires through-hole mounting. It operates efficiently at 86% and maintains functionality across a broad temperature range from -40°C to 85°C, with derating applied at higher temperatures. The unit complies with standard safety regulations including 60335-1 and 62368-1.
Key electrical specifications include a single output and a wide input voltage range. The physical dimensions are 69.5mm in length, 39.0mm in width, and 24.0mm in height. Environmental compliance includes RoHS3 compliance, MSL 1 rating, and REACH unaffected status.
85~305 VAC or 100~430 VDC.
4-DIP Module (Through Hole).
-40°C to 85°C with derating.
5V DC at 6A (30W).
IEC 60335-1 and IEC 62368-1.
86% typical.
Through Hole.
