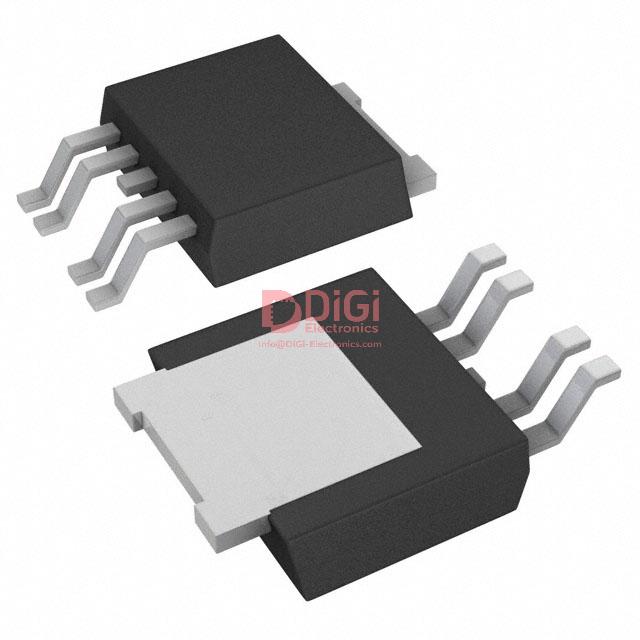

LD29150PTR The STMicroelectronics LD29150PTR is an adjustable positive linear voltage regulator. It provides an output current of up to 1.5A and has a maximum input voltage of 14V.
Mfr Part #:

LD29150PTR

Available from 3 distributors
Mfr Name: ST
ST
The STMicroelectronics LD29150PTR is an adjustable positive linear voltage regulator. It provides an output current of up to 1.5A and has a maximum input voltage of 14V.
✓ Total Stock: 267,002 pcs
$ Price Range: $0.28

LD29150PTR Available from 3 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Romaks Technologies ✓
Non-Authorised Inventory information
258,286 pcs
On Request
258286 pcs On Request 1 On Request On Request On Request On Request On Request
Xingangxin ✓
Non-Authorised Inventory information
6,216 pcs
On Request
6216 pcs On Request 1 On Request On Request On Request On Request On Request
Smaxon Electronics ✓
Non-Authorised Inventory information
2,500 pcs
On Request
2500 pcs On Request 1 On Request On Request 22+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

LD29150PTR Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Number of Regulators
Output Configuration
Output Current
Tape & Reel
View Similar Products (0)

LD29150PTR Description

Short technical summary and product information.

The STMicroelectronics LD29150PTR is an adjustable positive linear voltage regulator designed for various power management applications. It offers a maximum output current of 1.5A and can accept an input voltage up to 14V. The output voltage is adjustable, with a minimum fixed output of 1.23V and a maximum adjustable output of 13.3V.



This regulator features a low voltage dropout of 0.7V at 1.5A, making it suitable for applications where efficient power usage is critical. The component is housed in a PPAK package, designed for surface mounting.



Key electrical specifications include an adjustable output type, a single regulator output, and a maximum input voltage of 14V. The output current capability is 1.5A, with a dropout voltage of 0.7V at this current. The adjustable output voltage ranges from 1.23V to 13.3V.

LD29150PTR Quick Information

Product Type: Linear Voltage Regulator
Series: LD29150
Canonical Name: STMicroelectronics LD29150PTR Linear Voltage Regulator
Subcategory: Voltage Regulators - Linear

LD29150PTR Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

LD29150PTR Estimated Pricing

Qty Low High
1+ $0.28 $0.28

Estimated market price range - modelled values for guidance only, not live distributor offers.

LD29150PTR Features

  • Adjustable positive linear voltage regulator.
  • Maximum output current of 1.5A.
  • Maximum input voltage of 14V.
  • Low dropout voltage of 0.7V at 1.5A.
  • Available in PPAK package.

LD29150PTR Applications

  • Power management applications.
  • Efficient power regulation needs.
  • Adjustable voltage output circuits.
  • Surface-mount designs.

LD29150PTR FAQs

5 frequently asked questions generated from this part’s specifications.
What is the maximum output current for the LD29150PTR?

The maximum output current for the LD29150PTR is 1.5A.

What is the maximum input voltage for the LD29150PTR?

The maximum input voltage for the LD29150PTR is 14V.

What is the adjustable output voltage range for the LD29150PTR?

The output voltage for the LD29150PTR is adjustable from a minimum of 1.23V to a maximum of 13.3V.

What is the voltage dropout of the LD29150PTR?

The voltage dropout for the LD29150PTR is a maximum of 0.7V at 1.5A.

What package type is the LD29150PTR available in?

The LD29150PTR is available in a PPAK package.
