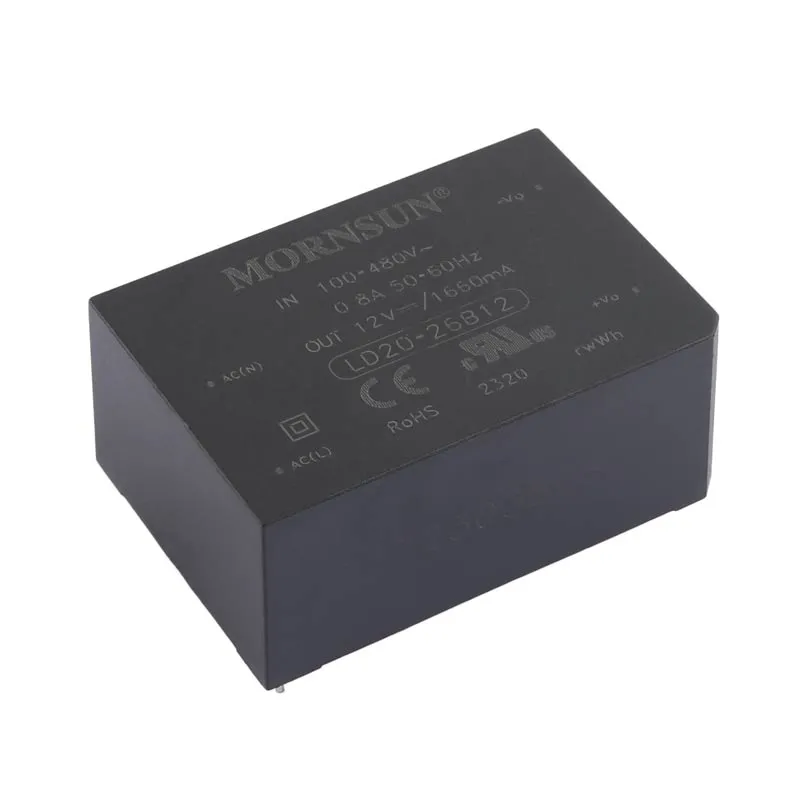

The Mornsun LD20-26B12 is an enclosed AC/DC converter designed for ITE (Commercial) applications. It delivers a stable 12V output at 1.66A, providing a total power of 20W with an efficiency of 82%.
This converter accepts a wide input voltage range, from 90 to 528 VAC or 100 to 745 VDC. Key features include an adjustable output and compliance with standards such as CE, cURus, and UL.
The LD20-26B12 is housed in an 8-DIP Module package with 4 leads and is designed for through-hole mounting. It operates within a temperature range of -40°C to 70°C, with derating applied at higher temperatures. Its dimensions are 70.0mm x 48.0mm x 30.0mm.
The LD20-26B12 provides a 12V output voltage.
The LD20-26B12 has an output current of 1.66A.
The LD20-26B12 has a power rating of 20W.
The LD20-26B12 accepts an input voltage range of 90 to 528 VAC or 100 to 745 VDC.
The operating temperature range for the LD20-26B12 is -40°C to 70°C, with derating.
The LD20-26B12 is in an 8-DIP Module package with 4 leads.
The LD20-26B12 is designed for through-hole mounting.
