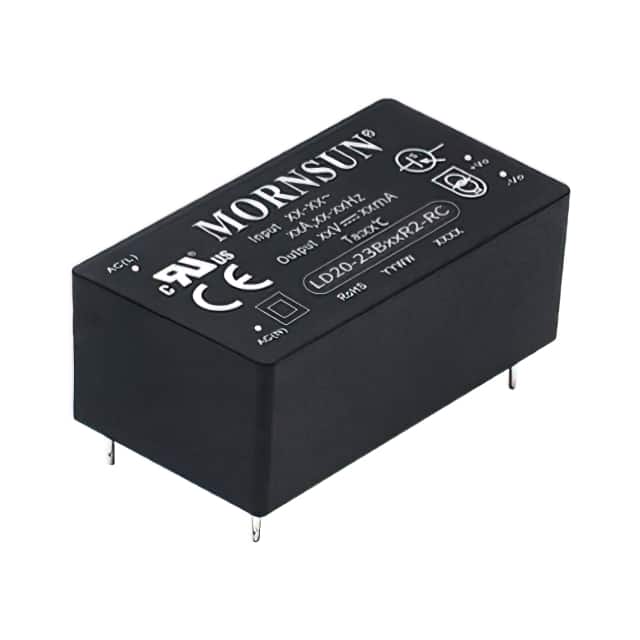

This MORNSUN LD20-23B48R2-RC is an enclosed AC/DC converter module from the LD series, delivering 20W of power. It accepts a broad input voltage range of 85 to 305 VAC or 100 to 430 VDC, making it suitable for various global applications.
The converter provides a single 48VDC output with a maximum current of 410mA. It offers a high isolation voltage of 4200VAC, ensuring safety and reliability in operation. The efficiency is rated at 89%.
Designed for through-hole mounting, this unit comes in a 5-DIP module package with 4 leads. Its dimensions are 52.40mm x 27.20mm x 24.00mm. The operating temperature range is -40°C to 85°C, with derating applied at higher temperatures.
This AC/DC converter is compliant with standards such as 60335-1 and 62368-1 and is suitable for applications in household appliances and ITE (Commercial) environments.
85-305 VAC or 100-430 VDC.
5-DIP Module, 4 Leads.
-40°C to 85°C with derating.
48 VDC.
410 mA.
20 W.
4200 VAC.
