| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Height | |
| Length | |
| Mounting Type | |
| No Load Power Consumption | |
| Number of Outputs | |
| Operating Temperature | |
| Output Current | |
| Output Voltage | |
| Package / Case | |
| Power (Watts) | |
| Type | |
| Voltage | |
| Width |

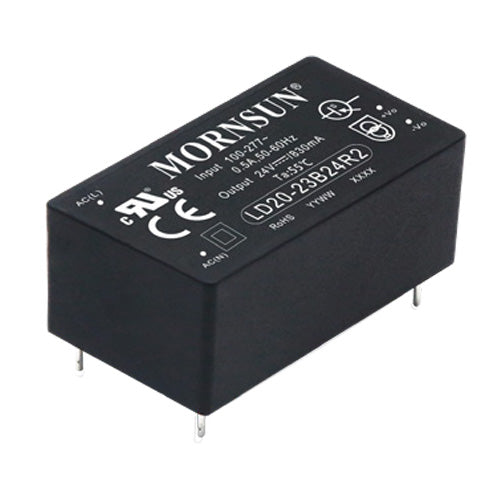

The Mornsun LD20-23B24R2 is an enclosed AC/DC converter designed for reliable power conversion in various applications. It provides a stable 24Vdc output with a maximum current of 0.83 Amps, delivering up to 20 Watts of power.
This converter boasts a wide input voltage range of 85~305VAC, making it suitable for diverse power grids. Its operating temperature range spans from -40°C to +85°C, with derating, ensuring performance in demanding environments. The unit is designed for through-hole mounting and comes in a 6-DIP Module package.
Key specifications include an efficiency of 87% and a low no-load power consumption of less than 0.1 Watt. It is certified by CB, CE, and cURus, indicating compliance with industrial safety standards. The dimensions are 52.4mm in length, 27.2mm in width, and 24.0mm in height.
Applications for this converter include household appliances, ITE (Commercial) equipment, and medical devices, highlighting its versatility and adherence to safety requirements.
85~305 VAC or 100~430 VDC.
24 Vdc at 0.83 A.
20 Watts.
-40°C to +85°C (with derating).
6-DIP Module, 4 Leads, Through Hole.
87%.
≤0.1 Watt.
