| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Power (Watts) | |
| Standard Number | |
| Type | |
| Voltage | |
| Width |

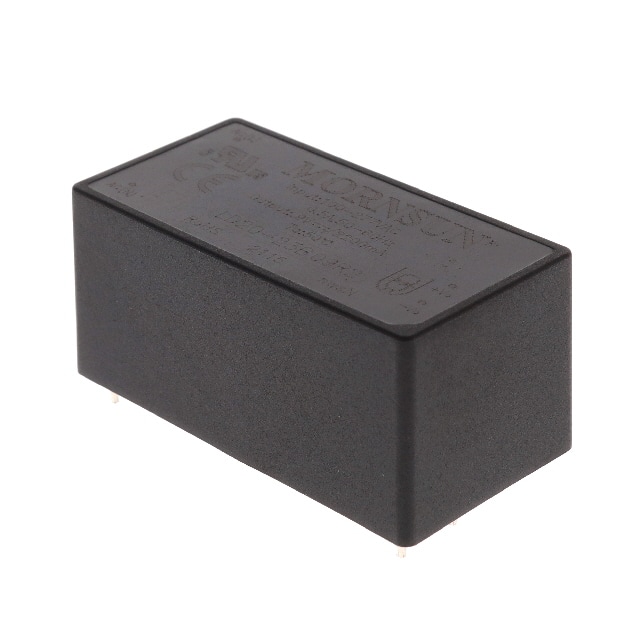

The MORNSUN LD20-23B09R2 is an AC/DC converter module designed for board-mount applications. It delivers 20W of power with a single 9VDC output, accepting a wide input voltage range of 85-305VAC or 100-430VDC.
Key electrical specifications include an output current of 2.2A, an efficiency of 84%, and a high isolation rating of 4200VAC. The operating temperature range is -40°C to 85°C with derating.
Mechanically, this converter has dimensions of 52.4mm x 27.2mm x 24.0mm and is designed for Through Hole mounting. It complies with safety standards such as 60335-1, 60601-1, and 62368-1, and holds approvals from CB, CE, and cURus.
This AC/DC converter is suitable for applications in household appliances, ITE (Commercial), and medical equipment.
The output voltage is 9 VDC.
The input voltage range is 85 to 305 VAC or 100 to 430 VDC.
The power rating is 20 W.
The isolation voltage is 4200 VAC.
The operating temperature range is -40°C to 85°C, with derating.
The package type is 6-DIP Module, 4 Leads.
It is mounted using the Through Hole method.
