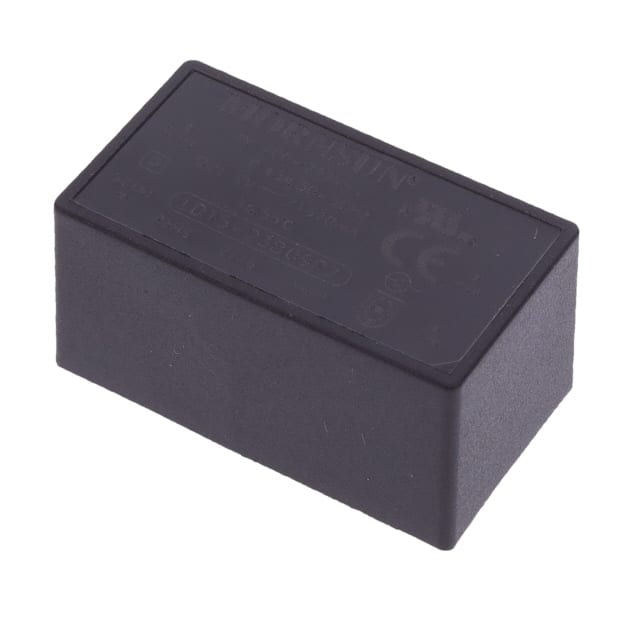

The Mornsun LD15-23B09R2 is an enclosed AC/DC converter designed for versatile power supply applications. It operates with a wide input voltage range of 85 to 305 VAC or 100 to 430 VDC, making it suitable for various global power grids.
This converter delivers a single output of 9V at 1.67A, providing a total power of 15W. It boasts an efficiency of 84% and operates within an extended temperature range of -40°C to 85°C, with derating applied at higher temperatures. The unit is designed for through-hole mounting and comes in a 5-DIP module package.
Key applications for the LD15-23B09R2 include household appliances, ITE (Information Technology Equipment) for commercial use, and medical equipment, supported by its compliance with standards like 60335-1 and 62368-1, and agency approvals including CB, CE, and cURus.
Its compact dimensions (47.6mm x 26.8mm x 23.5mm) and robust design make it a reliable choice for integration into various electronic systems requiring stable DC power from an AC source.
The input voltage range is 85 to 305 VAC or 100 to 430 VDC.
The package is a 5-DIP Module with 4 leads, through hole mount.
The operating temperature range is -40°C to 85°C with derating.
It holds CB, CE, and cURus approvals.
The output is 9V at 1.67A, providing 15W of power.
It is designed for household appliances, commercial ITE, and medical equipment.
