| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Height | |
| Industrial Grade | |
| Input Frequency | |
| Lead Style | |
| Length | |
| Mounting Type | |
| No Load Power Consumption | |
| Number of Outputs | |
| Operating Temperature | |
| Package / Case | |
| Power (Watts) | |
| SVHC Present | |
| Type | |
| Voltage | |
| Width |

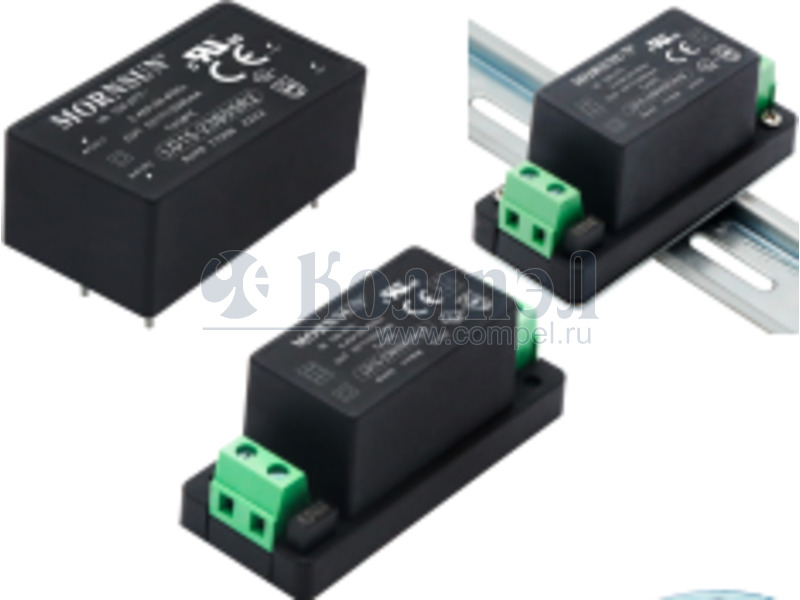

The Mornsun LD15-23B05R2 is a compact 15W AC/DC power converter designed for versatile applications. It accepts an ultra-wide input voltage range of 85 to 305VAC and 100 to 430VDC, making it suitable for global use.
This converter delivers a stable 5V output at 3A, with a nominal output power of 15W. It boasts high efficiency up to 85% and a low no-load power consumption of less than 0.1W. The operating ambient temperature range is -40°C to +85°C, with derating.
Designed with a Through Hole mounting type in a 5-DIP Module package, the LD15-23B05R2 measures 47.6mm x 26.8mm x 23.5mm. It is suitable for applications in household appliances, ITE (Commercial), and medical fields. The unit is certified by CB, CE, and cURus.
Key features include protection against short circuit, overload, and overvoltage. It also supports 5000m altitude applications and meets CISPR32/EN55032 Class B EMI performance.
The LD15-23B05R2 provides a 5V output voltage and a 3A output current.
The converter accepts an ultra-wide input voltage range of 85 to 305 VAC and 100 to 430 VDC.
The efficiency of the LD15-23B05R2 is typically 85%.
The operating ambient temperature range is -40°C to 85°C, with derating.
The LD15-23B05R2 is available in a 5-DIP Module package with 4 leads and is designed for Through Hole mounting.
The dimensions are 47.6mm in length, 26.8mm in width, and 23.5mm in height.
