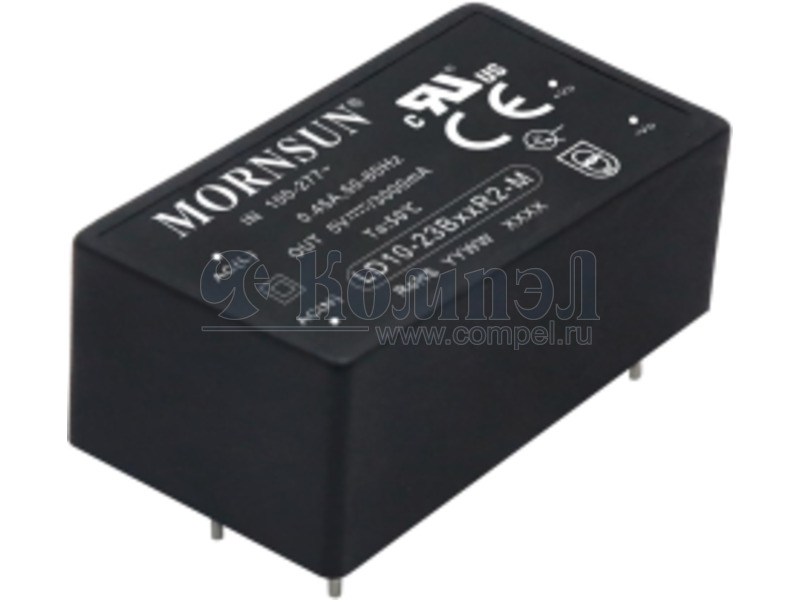

The Mornsun LD10-23B24R2 is a 10W AC/DC converter designed for reliable power conversion in various applications. It offers an ultra-wide input voltage range of 85-305VAC and 100-430VDC, making it versatile for global use.
Key electrical specifications include a nominal output voltage of 24V and an output current of 410mA, delivering a total output power of 10W. The converter boasts up to 85% efficiency and a low no-load power consumption of less than 0.1W. It operates within an ambient temperature range of -40°C to +85°C, with derating applied.
This AC/DC converter is suitable for applications such as household appliances and ITE (Commercial) equipment. It meets stringent EMI performance standards, including CISPR32/EN55032 CLASS B and EN55014. Safety approvals include CB, CE, and cURus, adhering to standards like IEC/EN60335-1 and IEC/EN62368-1.
The LD10-23B24R2 features a Through Hole mounting type and comes in a 6-DIP Module, 4 Leads package. It is designed for 5000m altitude applications and is compliant with RoHS3 standards.
The nominal output voltage is 24V.
The nominal output current is 410mA.
The input voltage range is 85-305VAC and 100-430VDC.
The operating temperature range is -40°C to +85°C, with derating.
The dimensions are 47.6mm x 26.8mm x 23.5mm.
The RoHS status is RoHS3 Compliant.
The Moisture Sensitivity Level is 1 Unlimited.
