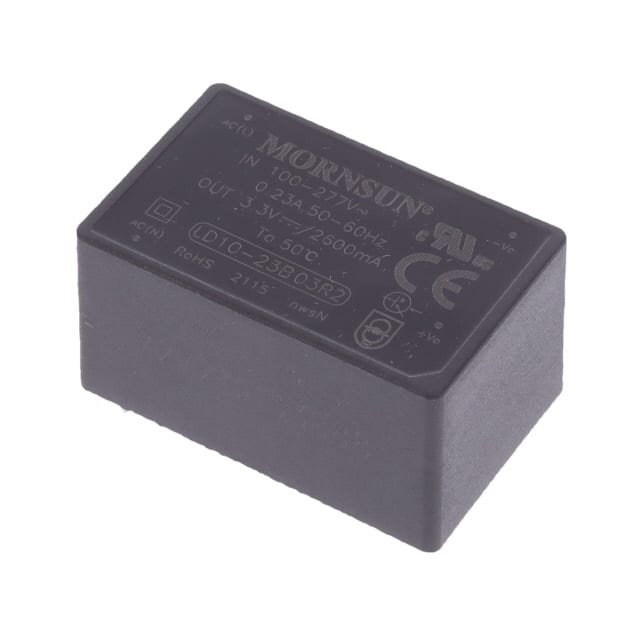

The Mornsun LD10-23B03R2 is a compact AC/DC converter designed for various applications. It provides a stable 3.3V output voltage with a maximum current of 2.6A, delivering a total output power of 8.6W.
This converter boasts an ultra-wide input voltage range, accepting both 85 to 305VAC and 100 to 430VDC, making it suitable for diverse power environments. It operates efficiently with a typical efficiency of 74% at 230VAC and features an adjustable output.
The LD10-23B03R2 is designed for through-hole mounting and comes in a 6-DIP module package with 4 leads. It operates within an ambient temperature range of -40°C to +85°C. The unit meets EMI standards CISPR32/EN55032 Class B and is approved by CB, CE, cURus, and UL.
Applications for this converter include household appliances and ITE (Commercial) equipment, where reliable power conversion is essential. Its robust design and safety approvals ensure suitability for demanding environments.
85-305 VAC and 100-430 VDC.
3.3 VDC.
6-DIP Module, 4 Leads.
-40°C to +85°C.
74% typical at 230VAC.
IEC/EN/UL62368, EN60335, EN61558.
40.0mm x 25.4mm x 21.0mm.
