| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5,698 pcs
|
5698 pcs | On Request | 1 | On Request | On Request | 1502+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Dimensions | |
| Input Frequency | |
| Mounting Type | |
| Operating Temperature Range | |
| Output Power |

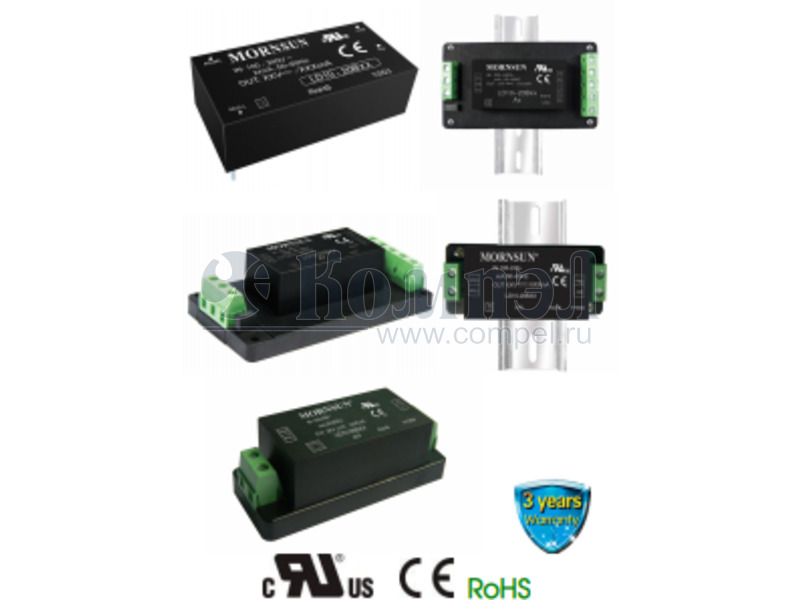

The Mornsun LD10-20B05 is a compact 10W AC/DC converter designed for universal input voltage, accepting both AC (85-264VAC) and DC (100-370VDC) sources. It operates reliably within a temperature range of -25°C to +70°C.
This converter includes essential protections such as output short circuit, over-current, and over-voltage, ensuring system safety and longevity. It supports multiple mounting options, including PCB, chassis, and Din-Rail, offering flexibility in integration.
With a focus on efficiency and reliability, the LD10-20B05 meets industrial and medical safety standards, including UL60950 and EN60601. Its dimensions are 53.8 x 28.8 x 19 mm, making it suitable for space-constrained applications in industrial, medical, and telecommunication sectors.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.23 | $2.23 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The output power is 10W.
It accepts AC input from 85-264 VAC and DC input from 100-370 VDC.
The operating temperature range is -25°C to +70°C.
It includes output short circuit, over-current, and over-voltage protections.
Mounting options include PCB, chassis, and Din-Rail.
The line regulation is ±0.5% under full load conditions.
The load regulation for other outputs is ±2%.
