| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
18,900 pcs
|
18900 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
2 pcs
|
2 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Current Rating (Amps) | |
| Features | |
| Flange Feature | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Shell Material, Finish | |
| Shell Size, Connector Layout | |
| Tape & Reel | |
| Termination | |
| Termination Style |

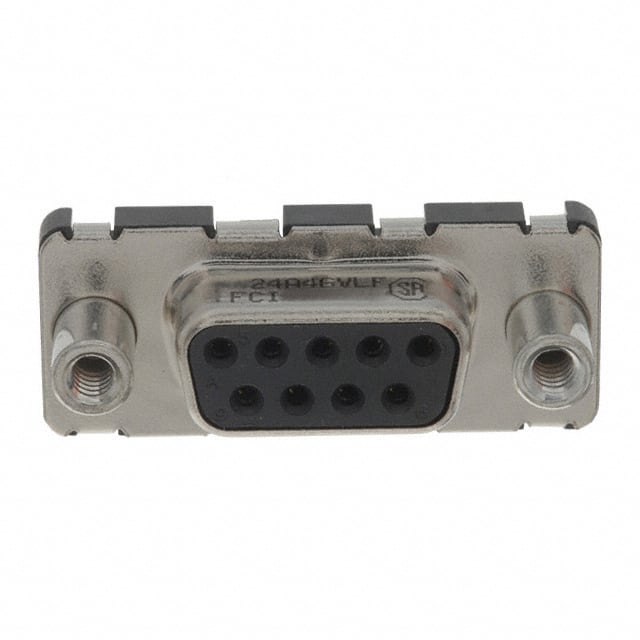

The Amphenol ICC LD09S24A4GV00LF is a D-Sub receptacle connector featuring 9 positions arranged in 2 rows. It is designed for through hole mounting with solder termination, making it suitable for vertical PCB mounting. The connector uses signal contacts with a gold flash finish for reliable electrical performance. Each contact is rated for 5 A of current.
The shell is made of steel with a tin-nickel plated finish, providing durability and EMI shielding. The shell size is 1 (DE, E). A flange feature on the mating side includes female screwlocks (4-40) for secure connection. The connector also includes a board lock feature for additional mechanical retention on the PCB. The insulator material has a UL94 V-0 flammability rating.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.62 | $1.62 |
| 10+ | $1.38 | $1.38 |
| 25+ | $1.17 | $1.17 |
| 100+ | $1.13 | $1.13 |
| 250+ | $1.06 | $1.06 |
| 500+ | $1.03 | $1.03 |
| 1,080+ | $0.93 | $0.93 |
| 2,160+ | $0.90 | $0.90 |
| 5,400+ | $0.90 | $0.90 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
Receptacle, Female Sockets.
9 positions.
Through Hole.
Solder.
5 A per contact.
Gold.
UL94 V-0.
