| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,600 pcs
|
1600 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Backset Spacing | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Current Rating (Amps) | |
| Features | |
| Flange Feature | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Shell Material, Finish | |
| Shell Size, Connector Layout | |
| Tape & Reel | |
| Termination | |
| Termination Style |

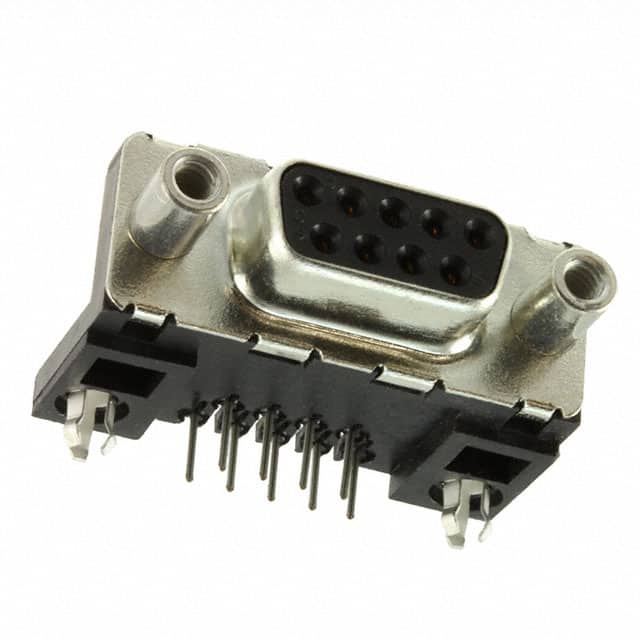

The Amphenol ICC LD09S13A4GV00LF is a 9-position D-Sub receptacle with female sockets arranged in 2 rows. This connector uses a right angle through-hole solder termination and is designed for board edge mounting. The steel shell features a tin-nickel plated finish, and the contacts have a gold flash finish for reliable signal transfer. A board lock feature ensures secure attachment to the PCB, and the flange includes a female screwlock (4-40) on the mating side. The backset spacing is 0.409" (10.40mm).
Electrically, each contact is rated for 5A. The insulator material has a flammability rating of UL94 V-0. The connector is listed as RoHS3 compliant, REACH unaffected, and has an MSL of 1 unlimited (all compliance data is unverified).
This right-angle D-Sub receptacle is suitable for applications requiring a compact, space-saving connector interface on PCBs. Typical uses include industrial control systems, data communication equipment, and computer peripherals where reliable D-Sub connections are needed.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.51 | $1.51 |
| 10+ | $1.44 | $1.44 |
| 25+ | $1.25 | $1.25 |
| 100+ | $1.22 | $1.22 |
| 250+ | $1.15 | $1.15 |
| 500+ | $1.09 | $1.09 |
| 1,190+ | $0.95 | $0.95 |
| 2,380+ | $0.94 | $0.94 |
| 5,950+ | $0.93 | $0.93 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
9 positions in 2 rows.
5A per contact.
Board edge, through hole, right angle.
Solder.
Gold flash.
Steel, tin-nickel plated.
Listed as RoHS3 compliant (unverified).
