| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,600 pcs
|
1600 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Backset Spacing | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Current Rating (Amps) | |
| Features | |
| Flange Feature | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Shell Material, Finish | |
| Shell Size, Connector Layout | |
| Tape & Reel | |
| Termination | |
| Termination Style |

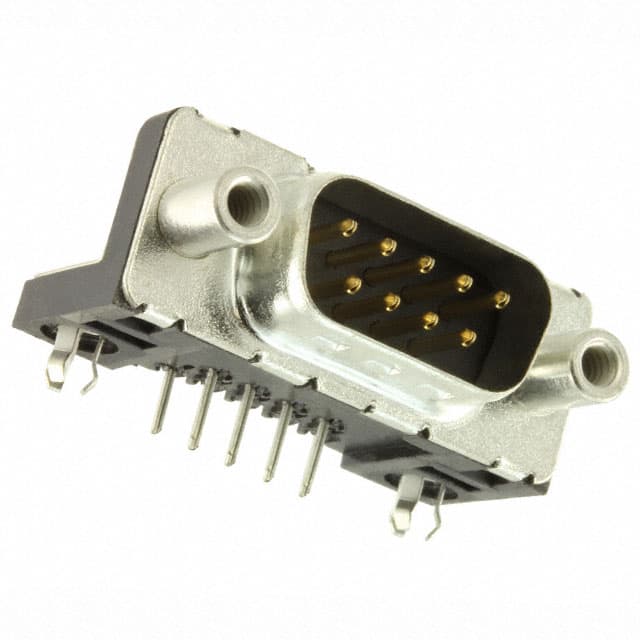

The Amphenol ICC LD09P33E4GV00LF is a 9-position D-Sub plug connector with male pins arranged in 2 rows. It features a through hole, right angle mounting style with solder termination for reliable PCB connections. The contacts are signal type with gold flash finish, rated at 5A per contact. The connector includes board lock and grounding indents for secure attachment and EMI management. The mating side is equipped with female screwlocks (4-40) for secure mating. The shell is steel with tin-nickel plating, and the insulator material meets UL94 V-0 flammability rating. The backset spacing is 0.318 inches (8.08mm). This connector is indicated as RoHS3 compliant, REACH unaffected, and MSL level 1 (unlimited). It is cross-referenced as DigiKey part 609-5186-ND.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.44 | $1.44 |
| 10+ | $1.24 | $1.24 |
| 25+ | $1.12 | $1.12 |
| 100+ | $1.08 | $1.08 |
| 250+ | $0.96 | $0.96 |
| 500+ | $0.91 | $0.91 |
| 1,190+ | $0.90 | $0.90 |
| 2,380+ | $0.84 | $0.84 |
| 5,950+ | $0.83 | $0.83 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
9 positions.
5A per contact.
Through hole, right angle.
Gold flash.
Yes, it includes board lock and grounding indents.
Steel, tin-nickel plated.
Yes, it is RoHS3 compliant.
