| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
800 pcs
|
800 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Backset Spacing | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Current Rating (Amps) | |
| Features | |
| Flange Feature | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Shell Material, Finish | |
| Shell Size | |
| Shell Size, Connector Layout | |
| Tape & Reel | |
| Termination |

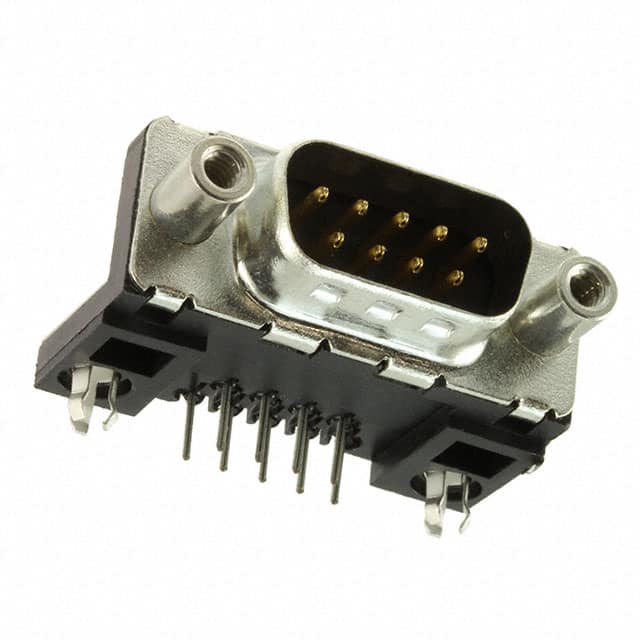

The LD09P13A4GV00LF is a 9-position D-Sub connector plug from Amphenol ICC, featuring male pins and a right angle solder termination. It is designed for board edge and through hole mounting, making it suitable for applications requiring a compact, low-profile connection.
This connector is rated for 5A per contact and features gold flash contact finish for reliable signal transmission. The shell is steel with tin-nickel plating for durability, and the insulator material meets UL94 V-0 flammability rating. It includes board lock and grounding indents for secure attachment and EMI protection.
The right angle orientation allows for space-saving designs on PCBs, ideal for industrial, telecom, and data communication equipment where D-Sub connections are standard. The connector has a backset spacing of 10.40mm and includes a mating side female screwlock (4-40) for secure mating.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.53 | $1.53 |
| 10+ | $1.33 | $1.33 |
| 25+ | $1.21 | $1.21 |
| 100+ | $1.15 | $1.15 |
| 250+ | $1.05 | $1.05 |
| 500+ | $0.99 | $0.99 |
| 1,190+ | $0.93 | $0.93 |
| 2,380+ | $0.92 | $0.92 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
9 positions in 2 rows.
5A per contact.
Board edge, through hole, right angle with solder termination.
Gold flash.
Steel, tin-nickel plated.
UL94 V-0.
Board lock and grounding indents.
