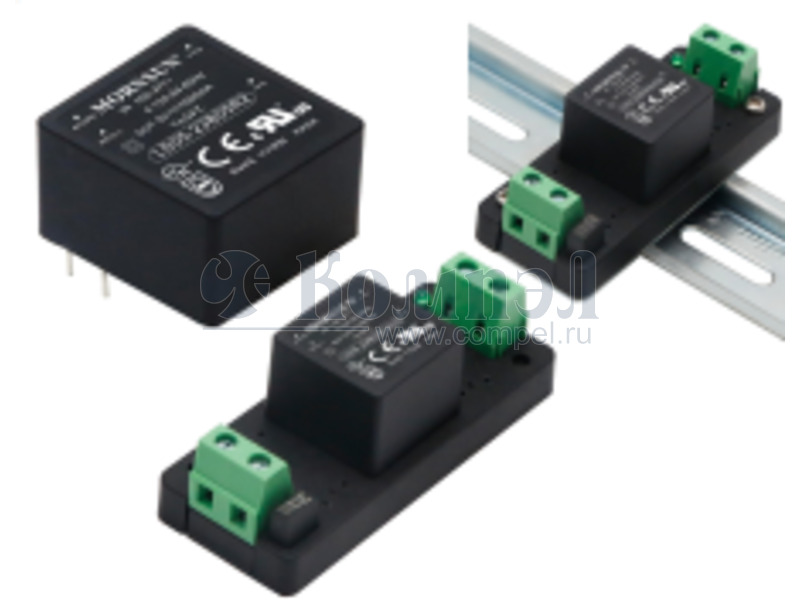

The Mornsun LD05-23B05R2 is a compact AC/DC converter designed for various applications, including household appliances and ITE commercial equipment. It delivers a stable 5V output at 1A, with a rated power of 5W. The converter boasts an ultra-wide input voltage range of 85-305VAC and 100-430VDC, ensuring versatility in different power environments.
Key electrical specifications include a typical efficiency of 77.5% at 230VAC and a low no-load power consumption of 0.1W. The operating ambient temperature range is -40°C to +85°C, with derating applied. The unit is designed for Through Hole mounting and comes in a 5-DIP Module, 4 Leads package.
Compliance is met with CB, CE, and cURus agency approvals. The plastic case meets UL94V-0 flammability standards, and EMI performance complies with CISPR32/EN55032 CLASS B and EN55014. This series is suitable for applications requiring high reliability and good EMC performance.
The LD05-23B05R2 has a nominal output voltage of 5V and a nominal output current of 1A.
The input voltage range is 85-305VAC and 100-430VDC.
The typical efficiency at 230VAC is 77.5%.
The operating ambient temperature range is -40°C to +85°C, with derating applied.
The LD05-23B05R2 is designed for Through Hole mounting.
The dimensions are 25.4mm in length, 25.4mm in width, and 17.6mm in height.
