| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Height | |
| Length | |
| Mounting Type | |
| No Load Power Consumption | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Power (Watts) | |
| SVHC Present | |
| Type | |
| Voltage | |
| Width |

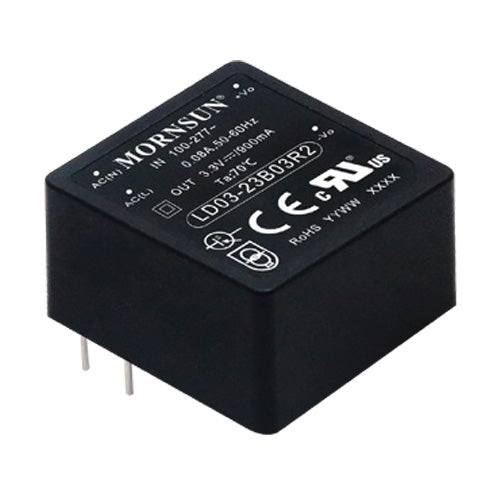

The Mornsun LD03-23B12R2 is an enclosed AC/DC converter with a power rating of 3 Watts and a single 12Vdc output. It accepts a wide input voltage range of 85-305Vac or 100-430Vdc, making it suitable for various applications.
This converter features a Through Hole mounting type and a 5-DIP Module, 4 Leads package. It operates efficiently at 78% and maintains performance across an operating temperature range of -40°C to +85°C, with derating. The dimensions are 25.4mm x 25.4mm x 17.6mm.
Designed for applications such as Household Appliances and ITE (Commercial), the LD03-23B12R2 holds approval agency certifications including CB, CE, and cURus. It also boasts a low no-load power consumption of less than 0.1 Watt and can operate at altitudes up to 5000 meters.
The output voltage is 12Vdc.
The maximum output current is 250mA.
The input voltage range is 85-305Vac or 100-430Vdc.
The operating temperature range is -40°C to +85°C, with derating.
It uses Through Hole mounting.
The dimensions are 25.4mm x 25.4mm x 17.6mm.
It has CB, CE, and cURus approval agency certifications.
