| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Input Frequency | |
| Mounting Type | |
| No Load Power Consumption | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Package / Case | |
| Power (Watts) | |
| Type | |
| Voltage | |
| Width |

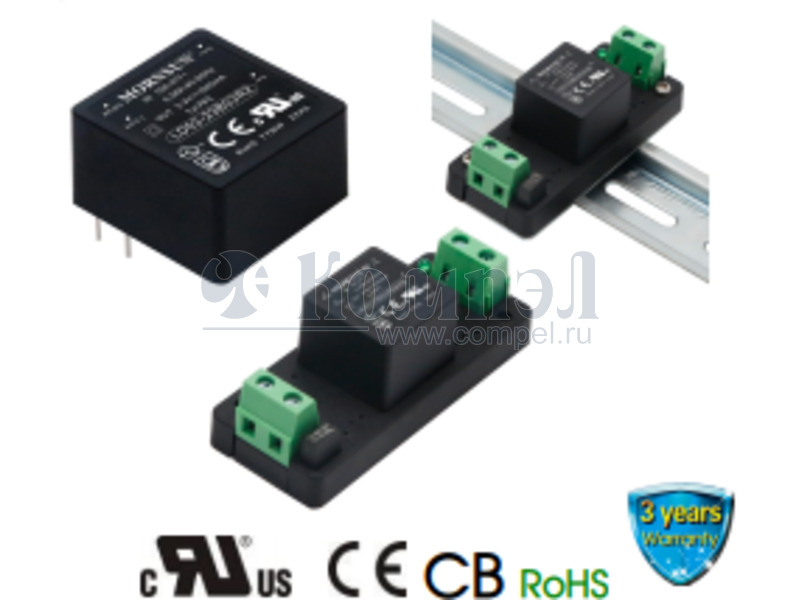

The Morning Star Industrial LD03-23B09R2 is a 3W AC/DC converter designed for reliable power conversion. It features an ultra-wide input voltage range of 85-305VAC and 100-430VDC, making it suitable for various global applications. This converter provides a single 9V output at 333mA with a nominal efficiency of 78% at 230VAC.
Key electrical specifications include line regulation of ±0.5% and load regulation of ±1%. The operating temperature range is -40°C to +85°C with derating. The compact size of 25.4mm x 25.4mm x 17.6mm and through-hole mounting make it adaptable for different PCB designs.
This AC/DC converter is suitable for applications such as household appliances and ITE (Commercial) equipment. It meets safety certifications including CB, CE, and cURus, and complies with RoHS3 standards.
The nominal output voltage is 9V.
The output power is 3W.
The input voltage range is 85 to 305 VAC and 100 to 430 VDC.
The operating temperature range is -40°C to +85°C.
It is a 5-DIP Module with 4 leads.
It is mounted using the through-hole method.
