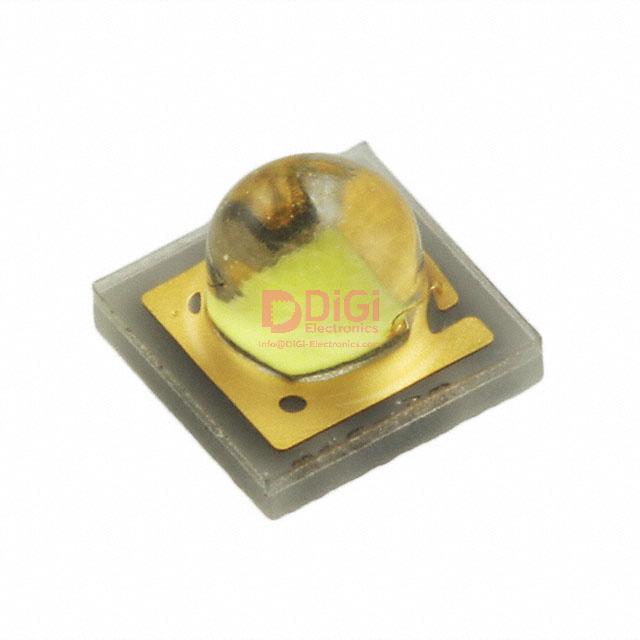

LCWCP7P The ams-OSRAM LCWCP7P is a warm white LED with a CCT of 3000K. It features a typical forward voltage of 3.2V and a test current of 350mA.
Mfr Part #:

LCWCP7P

Available from 1 distributors
Mfr Name: Osram
Osram
The ams-OSRAM LCWCP7P is a warm white LED with a CCT of 3000K. It features a typical forward voltage of 3.2V and a test current of 350mA.
✓ Total Stock: 600 pcs
$ Price Range: $0.99

LCWCP7P Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Rayichip ✓
Non-Authorised Inventory information
600 pcs
On Request
600 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

LCWCP7P Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Failure Rate
Forward Current
Forward Voltage
Mounting Type
Supplier Device Package
Viewing Angle
View Similar Products (0)

LCWCP7P Description

Short technical summary and product information.

The ams-OSRAM LCWCP7P is a warm white LED from the OSLON SSL series, designed for various lighting applications. It emits light with a Correlated Color Temperature (CCT) of 3000K, providing a warm illumination.



This LED operates with a typical forward voltage of 3.2V and a test current of 350mA, delivering a luminous flux of 80lm at 25°C. Its Color Rendering Index (CRI) is 80, ensuring good color representation. The maximum forward current is rated at 700mA.



The LCWCP7P features a wide viewing angle of 80 degrees. It is housed in a compact 1212 (3030 Metric) SMD package, measuring 3.00mm x 3.00mm with a seated height of 0.093" (2.35mm). The mounting type is surface mount, making it suitable for automated assembly processes.



This component is compliant with RoHS3 standards and has an MSL rating of 1, indicating unlimited shelf life under recommended storage conditions.

LCWCP7P Quick Information

Product Type: LED
Series: OSLON SSL
Canonical Name: Osram LCWCP7P LED White Warm 3000K
Subcategory: LED

LCWCP7P Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

LCWCP7P Estimated Pricing

Qty Low High
1+ $0.99 $0.99

Estimated market price range - modelled values for guidance only, not live distributor offers.

LCWCP7P Features

  • Warm white LED with 3000K CCT.
  • Typical forward voltage of 3.2V.
  • Surface mount 1212 (3030 Metric) package.
  • 80° viewing angle for wide light distribution.
  • High luminous efficacy of 71 lm/W.

LCWCP7P Applications

  • Suitable for general lighting applications.
  • Ideal for task lighting fixtures.
  • Used in accent lighting designs.
  • Applicable for decorative lighting.

LCWCP7P FAQs

6 frequently asked questions generated from this part’s specifications.
What is the color temperature of the ams-OSRAM LCWCP7P LED?

The ams-OSRAM LCWCP7P LED has a color temperature of 3000K, providing a warm white light.

What is the typical forward voltage for the LCWCP7P LED?

The typical forward voltage for the LCWCP7P LED is 3.2V.

What is the luminous flux of the LCWCP7P LED at 25°C?

The luminous flux of the LCWCP7P LED at 25°C and the test current is 80lm.

What is the package type for the LCWCP7P LED?

The LCWCP7P LED is supplied in a 1212 (3030 Metric) SMD package and is designed for surface mounting.

What is the RoHS status of the LCWCP7P LED?

The RoHS status of the LCWCP7P LED is RoHS3 Compliant.

What is the Moisture Sensitivity Level (MSL) for the LCWCP7P LED?

The Moisture Sensitivity Level (MSL) for the LCWCP7P LED is 1 Unlimited.
