| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Power (Watts) | |
| Standard Number | |
| Type | |
| Voltage | |
| Width |

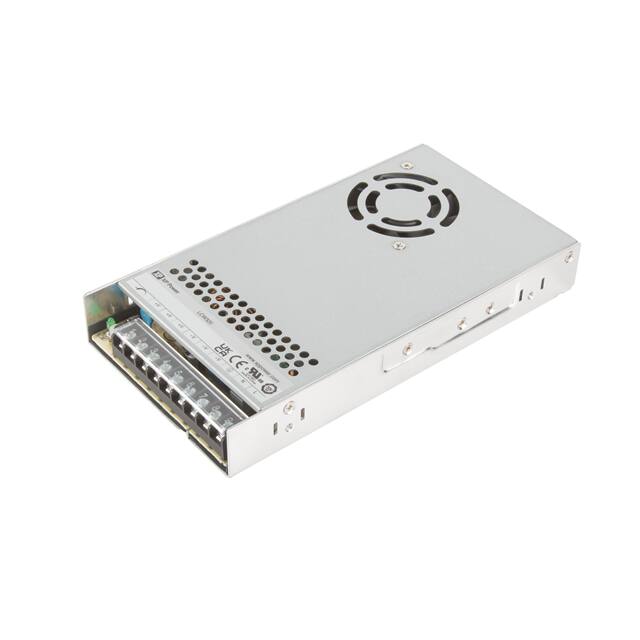

The XP Power LCW320PS15 is a 321W fan-cooled AC-DC power supply designed for industrial electronics and technology applications. It offers a regulated 15VDC output with an adjustable range and a maximum current of 21.4A.
Key features include a wide AC input range of 85-305VAC, active Power Factor Correction (PFC), and high efficiency up to 89%. The unit provides essential protections such as overvoltage, overload, and short circuit protection. It is designed for chassis mounting and operates within a temperature range of -30°C to +70°C.
This power supply is suitable for applications requiring reliable power conversion, including auxiliary power sources, security installations, lighting control, smart home systems, and ticketing/vending machines. It meets ITE and industrial approval standards, including CE, EN, UKCA, and UL certifications, and complies with standard number 62368-1.
The LCW320PS15 has a nominal output voltage of 15.0 VDC.
The LCW320PS15 can provide a maximum output current of 21.4 A.
This AC-DC converter has a power rating of 321W.
The typical efficiency of the LCW320PS15 is 89% at 230VAC full load.
The LCW320PS15 operates in a temperature range of -30°C to +70°C.
The dimensions of the LCW320PS15 are 215.0mm x 115.0mm x 30.0mm.
Yes, the LCW320PS15 has overvoltage protection, with a minimum threshold of 16.2 VDC.
