| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Input Voltage | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Overload Protection | |
| Power (Watts) | |
| Standard Number | |
| Type | |
| Voltage | |
| Width |

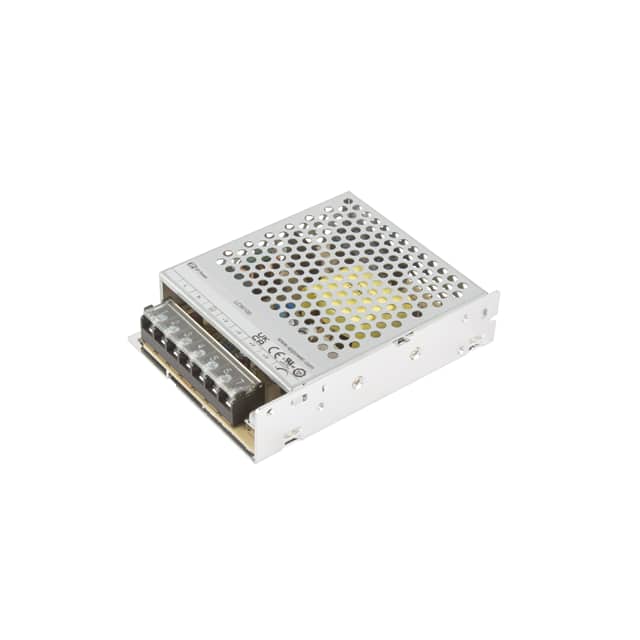

The XP Power LCW100US15 is an enclosed AC-DC power supply designed for industrial, ITE, and household applications. It provides a regulated 15VDC output at up to 7A, delivering a total of 105W of power. The unit operates with a wide AC input range of 85-305VAC and features adjustable output voltage with ±10% trim.
Key electrical specifications include 87% typical efficiency at full load and ±0.5% load regulation. Protection features include overvoltage, overload, and short circuit protection. The operating temperature range is -30°C to 70°C with derating. Its dimensions are 129.0mm x 97.0mm x 30.0mm, suitable for chassis mounting.
This power supply meets safety standards including 62368-1 and carries approvals from CE, EN, UKCA, and UL. It also exhibits Class B conducted and radiated emissions, making it suitable for various electronic systems requiring reliable power conversion.
The nominal output voltage is 15.0 VDC.
The maximum output current is 7.0 A.
The power rating is 105W.
The typical efficiency is 87%.
The input voltage range is 85-305 VAC.
The operating temperature range is -30°C to 70°C.
The LCW100US15 is designed for chassis mounting.
