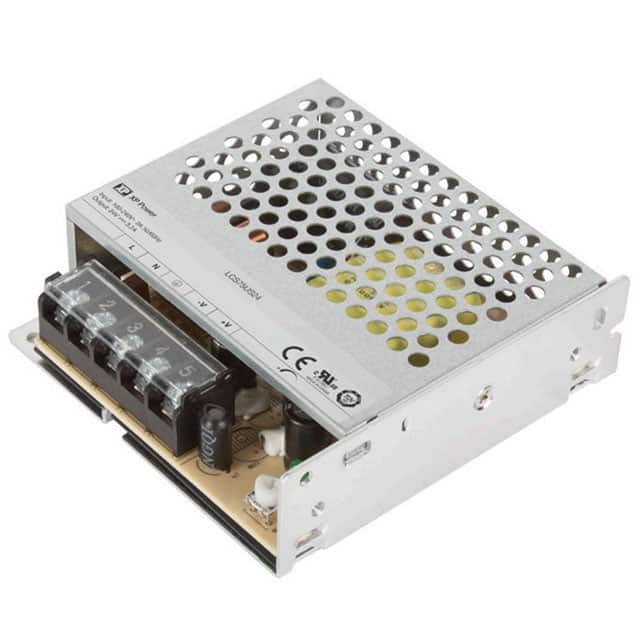

The XP Power LCS75US24 is an enclosed AC/DC power supply designed for various applications including industrial electronics, technology, and household use. It provides a regulated 24V output at 3.2A, delivering up to 77W of power with a typical efficiency of 90% at 230VAC full load.
Key features include an input voltage range of 85-264VAC, overvoltage protection, overload protection up to 200%, and short circuit protection. The unit operates reliably within a temperature range of -30°C to 70°C, with derating. It meets safety standards such as CE, TUV, and UL, and complies with IEC 62368-1.
With dimensions of 99.0mm x 82.0mm x 30.0mm, it is suitable for chassis mounting. The LCS75US24 offers adjustable output voltage, a power ON LED, and low stand-by power consumption, making it a cost-effective solution for auxiliary power sources, security installations, and control systems.
24 VDC nominal, with an adjustment range of 21.6 to 28.8 VDC.
-30°C to 70°C with derating.
Enclosed chassis mount.
90% typical at 230VAC full load.
Overload protection (110-200% of nominal current), overvoltage protection (33.6VDC minimum), and short circuit protection (5s).
99.0mm x 82.0mm x 30.0mm.
Designed to 62368-1.
