| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Industrial Grade | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Overload Protection | |
| Power (Watts) | |
| Standard Number | |
| Temperature Coefficient | |
| Type | |
| Voltage | |
| Width |

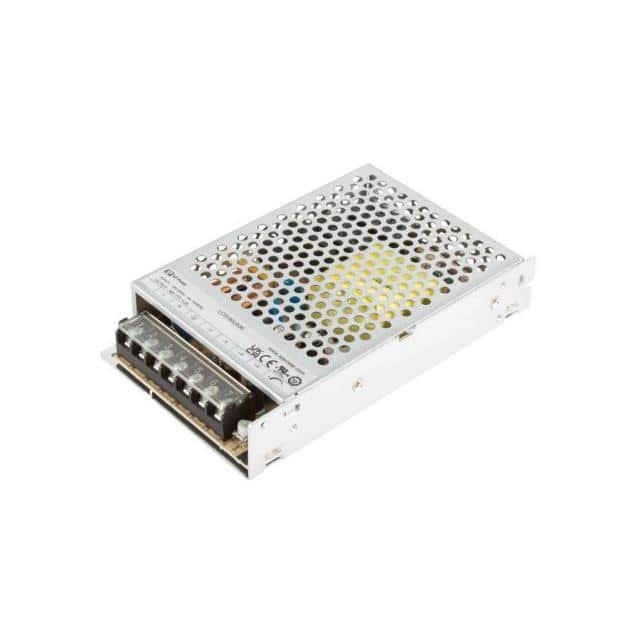

The XP Power LCS150US24 is a convection-cooled AC-DC power supply designed for industrial electronics, technology, and household applications. It offers a regulated 24V output with a current rating of 6.5A, providing a total power of 156W. The unit operates with an efficiency of 88% and accepts a wide input voltage range of 85 to 264VAC.
Key features include output voltage adjustment up to ±10%, short circuit, overvoltage, and overload protection. The operating temperature range is -30°C to +70°C with derating. Its dimensions are 159.0mm x 97.0mm x 30.0mm, and it is designed for chassis mounting.
This power supply is suitable for applications such as auxiliary power sources, security installations, lighting control, smart home systems, and ticketing machines. It holds approvals from CE, EN, UKCA, and UL, and complies with standards 60335-1 and 62368-1.
The nominal output voltage is 24.0 VDC.
The maximum output current is 6.5 A.
The power rating is 156W.
The typical efficiency is 88% at 230VAC full load.
The operating temperature range is -30°C to +70°C, with derating applicable.
The dimensions are 159.0mm x 97.0mm x 30.0mm.
It includes continuous short circuit protection with auto recovery, overload protection from 110-150% of nominal current, and overvoltage protection at 33.6 VDC.
