| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Overload Protection | |
| Power (Watts) | |
| Standard Number | |
| Type | |
| Voltage | |
| Width |

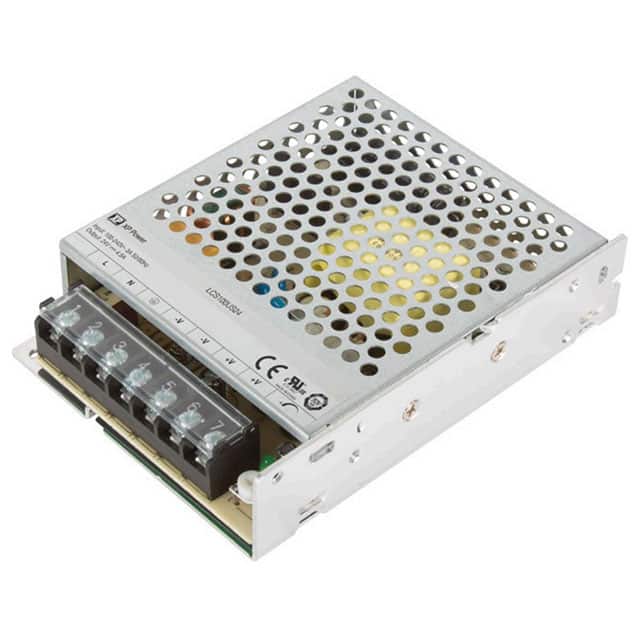

The XP Power LCS100US24 is an enclosed AC-DC power supply designed for chassis mounting. It delivers a nominal output voltage of 24VDC at a maximum current of 4.5A, providing a total power of 108W. This converter operates with an efficiency of 90% and features universal input voltage range from 85-264VAC.
Key features include adjustable output, overvoltage protection, overload protection, and short circuit protection. The operating temperature range is -30°C to 70°C with derating. Its dimensions are 129.0mm x 97.0mm x 30.0mm.
This power supply is suitable for applications in ITE (Commercial), Industrial, and Household Appliances sectors. It meets safety standards including CE, TUV, and UL approvals and complies with standard IEC 62368-1.
The nominal output voltage is 24 VDC.
The maximum output current is 4.5 A.
The power rating is 108W.
The typical efficiency is 90% at 230VAC full load.
The operating temperature range is -30°C to 70°C, with derating.
The dimensions are 129.0mm x 97.0mm x 30.0mm.
It has CE, TUV, and UL approval agency certifications.
