| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
11,825 pcs
|
11825 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Configuration | |
| Lens Material | |
| Lens Size | |
| Lens Style | |
| Mounting Type | |
| Panel Thickness | |
| Type |

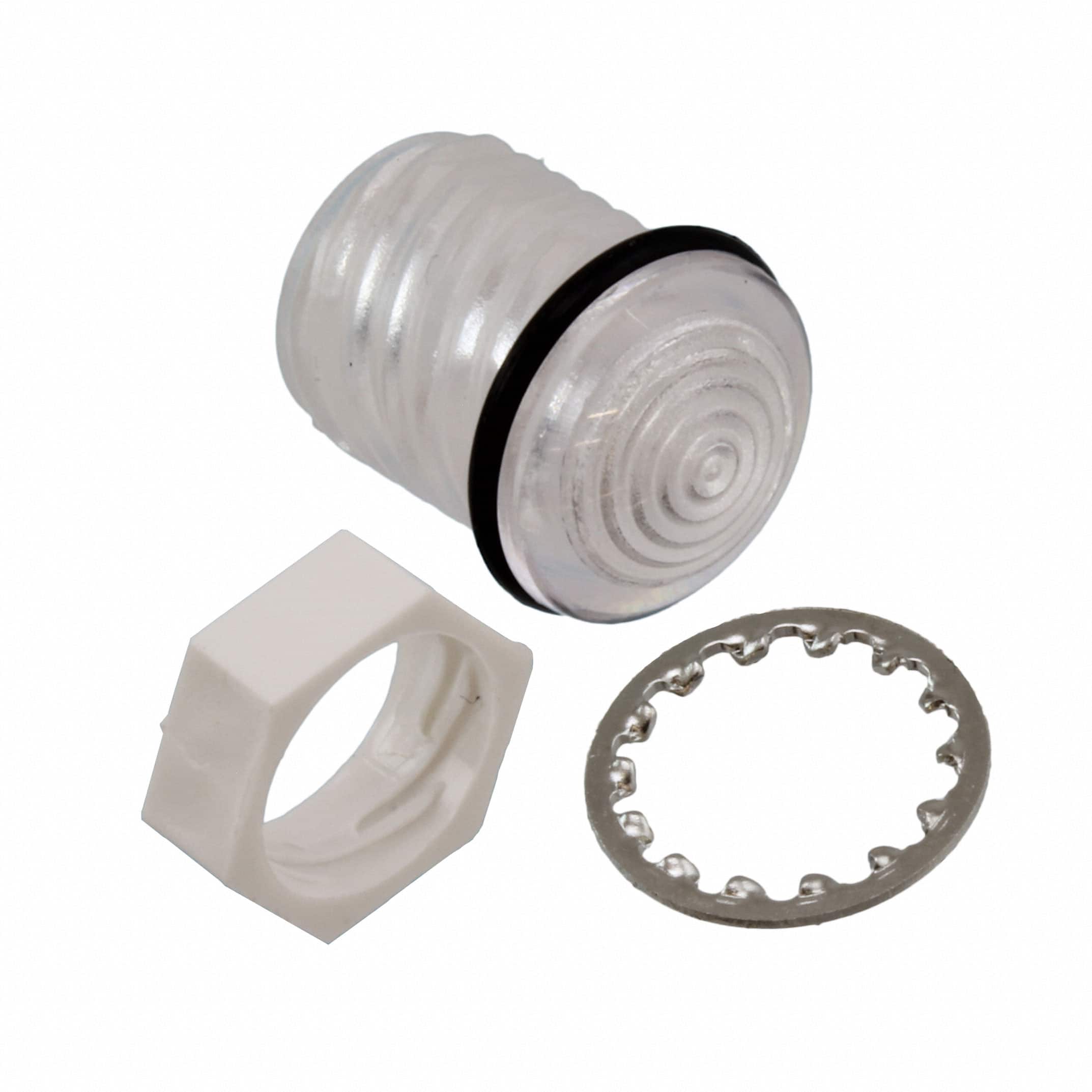

The Visual Communications Company LCS_032_CTP is a rigid light pipe assembly featuring a clear optical grade acrylic litepipe and a polycarbonate lens. Designed for panel mounting, it requires a specific panel hole diameter of 7.92mm and accommodates panel thicknesses from 0.8mm to 3.18mm.
This light pipe assembly meets stringent environmental standards, including NEMA 6P/IP 67 ratings, ensuring durability and protection against moisture and dust ingress. The materials used are UL rated: the litepipe is UL 94-HB3, the lens is UL 94-V2, and the retaining nut is UL 94-V0.
Assembly involves inserting the litepipe through the panel, attaching a lock washer and retaining ring, and then positioning the PCB. The clear lens style and threaded design make it suitable for various optical applications where light transmission and environmental sealing are critical.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The LCS_032_CTP is a rigid light pipe assembly.
The lens size is 8.74mm.
The LCS_032_CTP is designed for panel mounting.
It meets NEMA 6P/IP 67 standards.
The litepipe is clear optical grade acrylic (UL 94-HB3), the lens is polycarbonate (UL 94-V2), the seal is EPDM, and the retaining nut is thermoplastic (UL 94-V0).
