| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
8,541 pcs
|
8541 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
817 pcs
|
817 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Mounting Type | |
| Number of I | |
| Number of LABs | |
| Number of Logic Elements | |
| Operating Temperature | |
| Supplier Device Package | |
| Supplier Package | |
| Tape & Reel | |
| Total RAM Bits | |
| Voltage |
The Lattice Semiconductor LCMXO2280C-5FTN324C is a non-volatile, infinitely reconfigurable FPGA from the MachXO family. It features 2280 LUTs (Logic Elements) and 285 LABs, providing a high logic density. The device includes 28.262 Kbits of total RAM bits, supporting embedded and distributed memory applications.

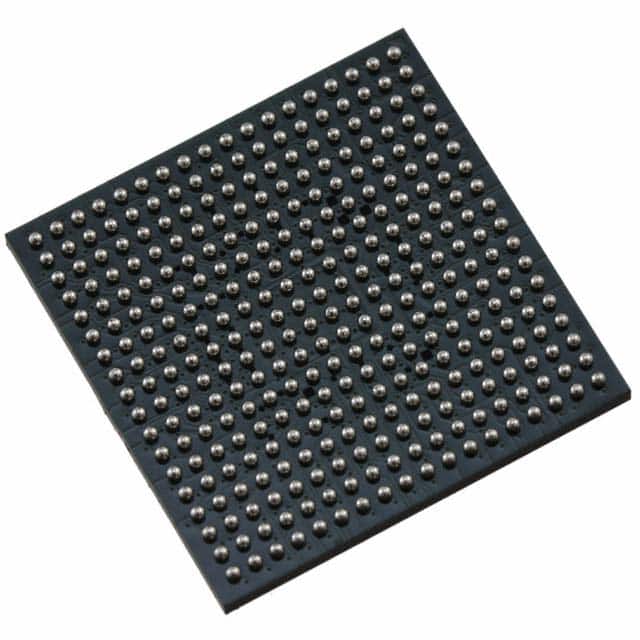

With 271 I/O pins, this FPGA is suitable for glue logic, bus bridging, and control functions. It operates over a voltage range of 1.71V to 3.465V and has an operating temperature range of 0°C to 85°C (TJ). The LCMXO2280C-5FTN324C is designed for surface mounting and comes in a 324-FTBGA (19x19) package, also referred to as 324-LBGA.
Key features include instant-on capability, excellent design security, and support for in-field logic updates via TransFR™ Reconfiguration. The flexible I/O buffer supports various interfaces like LVCMOS, LVTTL, PCI, and LVDS. It also incorporates sysCLOCK™ PLLs for clock management.
| Qty | Low | High |
|---|---|---|
| 1+ | $14.72 | $14.72 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The LCMXO2280C-5FTN324C has 2280 logic elements.
The LCMXO2280C-5FTN324C has 271 I/O pins.
The operating voltage range for the LCMXO2280C-5FTN324C is 1.71V to 3.465V.
The LCMXO2280C-5FTN324C is supplied in a 324-LBGA package, with the supplier package code 324-FTBGA (19x19).
The operating temperature for the LCMXO2280C-5FTN324C is 0°C to 85°C (TJ).
The LCMXO2280C-5FTN324C has a total of 28262 RAM bits.
