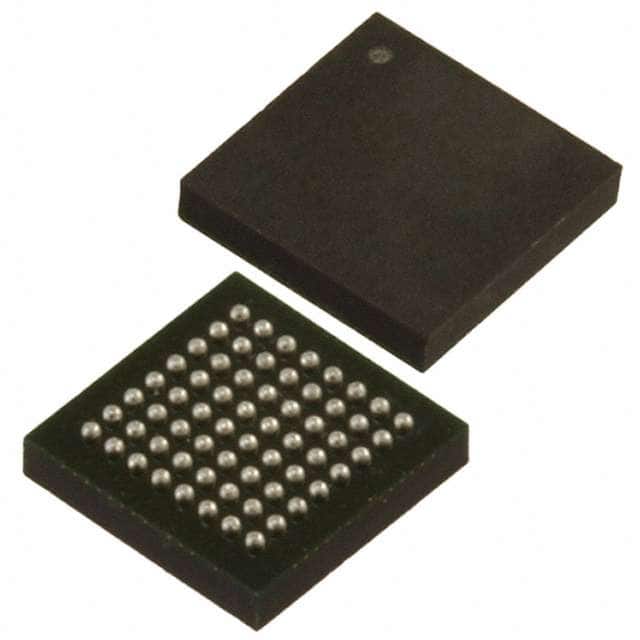

The Lattice Semiconductor LCMXO2-256ZE-3UMG64C is a Field Programmable Gate Array (FPGA) from the MachXO2 family. It features a flexible logic architecture with 256 LUT4s and 44 I/O pins, designed for ultra-low power consumption using an advanced 65 nm process.
This device offers embedded and distributed memory, including up to 240 kbits of sysMEM™ Embedded Block RAM and up to 54 kbits of Distributed RAM. It also includes up to 256 kbits of on-chip user flash memory with 100,000 write cycles, accessible through WISHBONE, SPI, I2C, and JTAG interfaces.
The LCMXO2-256ZE-3UMG64C supports a wide range of I/O interfaces, including LVCMOS, LVTTL, LVDS, and HSTL. It operates within a voltage range of 1.14V to 1.26V and has an operating temperature range of 0°C to 85°C (TJ).
Packaged in a 64-UCBGA (4x4) or 64-VFBGA, this FPGA is suitable for surface mount applications. Its non-volatile, infinitely reconfigurable nature allows for instant-on functionality, powering up in microseconds.
The LCMXO2-256ZE-3UMG64C has 256 logic elements.
The LCMXO2-256ZE-3UMG64C has 44 I/O pins.
The operating voltage range for the LCMXO2-256ZE-3UMG64C is 1.14V to 1.26V.
The LCMXO2-256ZE-3UMG64C is available in a 64-UCBGA (4x4) or 64-VFBGA package.
The operating temperature range is 0°C to 85°C (TJ).
Yes, it has up to 256 kbits of on-chip user flash memory with 100,000 write cycles.
The standby power consumption is as low as 22 µW.
