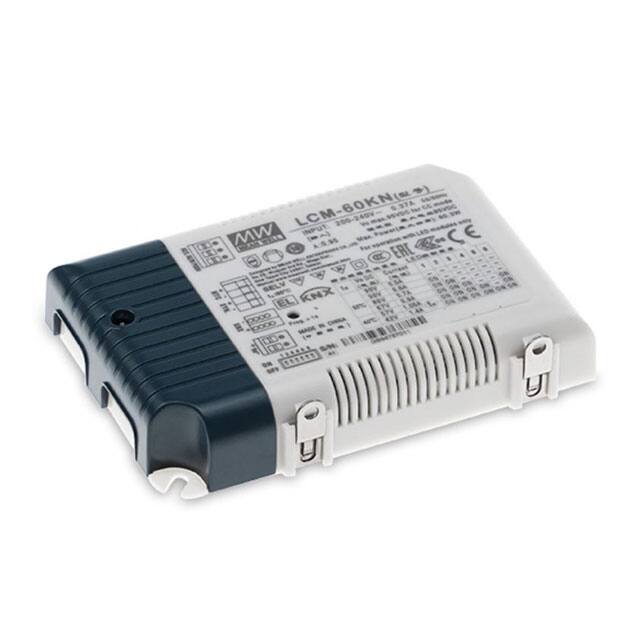

The Mean Well LCM-60KN is a 60W constant current LED driver designed for reliable LED lighting applications. It accepts a wide input voltage range of 180 to 295 VAC and delivers an adjustable output current from 500 mA to 1.4 A.
This AC-DC converter achieves up to 91% efficiency, reducing power loss and heat generation. It includes over temperature protection (OTP), over voltage protection (OVP), and short circuit protection (SCP) for safe operation.
The driver features a terminal block termination style and measures 123.5mm x 81.5mm x 23.0mm. It is approved by CB, CCC, CE, EAC, and ENEC agencies.
| Qty | Low | High |
|---|---|---|
| 1+ | $55.10 | $55.10 |
| 5+ | $52.50 | $52.50 |
| 10+ | $50.20 | $50.20 |
| 20+ | $49.72 | $49.72 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The input voltage range is 180 to 295 VAC.
The output current range is 500 mA to 1.4 A.
The maximum power output is 60 W.
It includes over temperature protection (OTP), over voltage protection (OVP), and short circuit protection (SCP).
The operating temperature range is -30°C to 90°C.
The efficiency is 91%.
The dimensions are 123.5mm x 81.5mm x 23.0mm (4.86" x 3.21" x 0.91").
