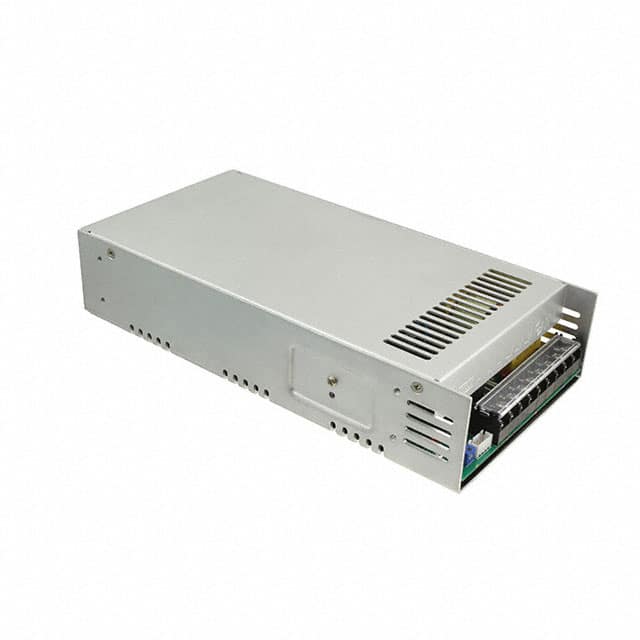

The XP Power LCL500PS27 is an enclosed AC/DC converter designed for industrial applications. It delivers a 500W output power with a nominal output voltage of 27V and a current rating of 18.5A. This model boasts high efficiency at 88% and operates within a wide temperature range from -10°C to 70°C.
Featuring a chassis mount type, the LCL500PS27 is suitable for integration into various systems. Its input characteristics include a wide operating voltage range of 85-264 VAC and a frequency range of 47-63 Hz. Standard features include overvoltage, overload, short circuit, and over temperature protection. The unit also includes remote sense and remote on/off capabilities, enhancing its utility in complex setups.
This converter is approved to ITE (62368-1) safety standards and meets EN55032 Level B conducted emissions. Its dimensions are 250.0mm in length, 127.0mm in width, and 53.0mm in height.
The LCL500PS27 has a nominal output voltage of 27 VDC, adjustable by ±1 V.
The maximum output current for the LCL500PS27 is 18.5 A.
The LCL500PS27 has a power rating of 500W.
The operating temperature range is from -10°C to 70°C, with derating above +50°C.
The dimensions are 250.0mm in length, 127.0mm in width, and 53.0mm in height.
