| Category | |
| Manufacturer Name | |
| Applications | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Input Frequency | |
| Input Voltage | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Overload Protection | |
| Power (Watts) | |
| Storage Temperature | |
| Type | |
| Voltage | |
| Width |

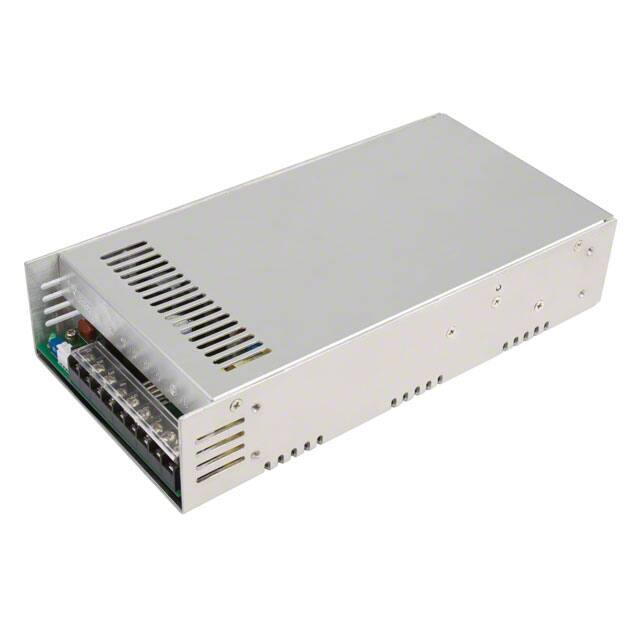

The XP Power LCL500PS12 is an enclosed AC/DC power supply designed for industrial applications. It delivers a 500W output power with a nominal 12V output voltage.
Key electrical specifications include an input voltage range of 85-264 VAC and an input frequency of 47-63 Hz. The unit offers high efficiency, rated at a minimum of 85% at full load and 230 VAC. Protection features include overvoltage, overload, and short circuit protection. It also supports remote sense and remote on/off functionality.
With dimensions of 250.0mm x 127.0mm x 53.0mm, the LCL500PS12 is designed for chassis mounting. The operating temperature range is -10°C to 70°C with derating. It meets various EMC and safety standards, including EN55022 and EN61000-4 series.
This power supply is suitable for ITE (Commercial) applications and offers features like adjustable output and universal input.
The LCL500PS12 has a nominal output voltage of 12V.
The maximum output current is 42A.
The input voltage range is 85-264 VAC.
The operating temperature range is -10°C to 70°C with derating.
The dimensions are 250.0mm x 127.0mm x 53.0mm.
Yes, it has overload protection ranging from 110-130% of rated output power.
The LCL500PS12 requires chassis mounting.
