| Category | |
| Manufacturer Name | |
| Applications | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Input Frequency | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Type | |
| Voltage | |
| Width |

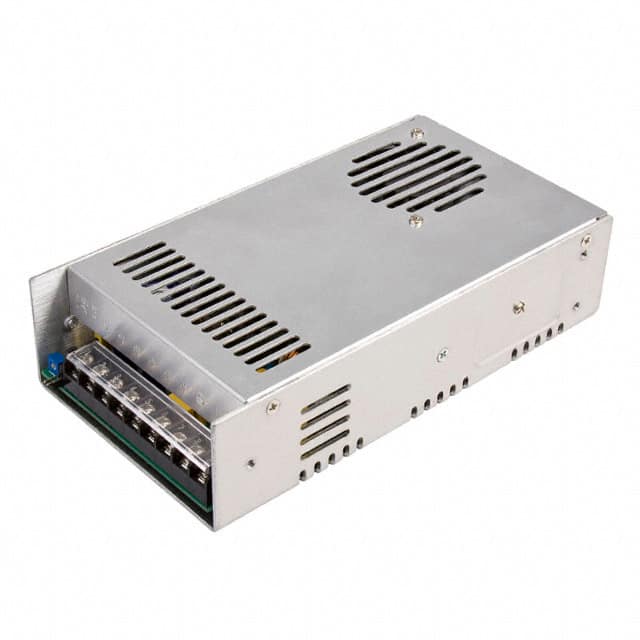

The XP Power LCL300PS12 is an enclosed AC/DC converter from the LCL series, providing a single 12V output at 25A for a total output power of 300W. It accepts a universal input voltage range of 85 to 264 VAC at 47 to 63 Hz, with a typical power factor greater than 0.9. The converter achieves a typical efficiency of 88% and features output voltage trim capability from 11.0 to 13.0 V.
Electrical characteristics include a typical line regulation of ±0.5% and load regulation of ±1%. Ripple and noise are specified at 100 mV pk-pk typical. The unit has a startup delay of 2 seconds, a rise time of 65 ms, and a hold-up time of 10 ms at 115 VAC full load. Inrush current is 50 A typical at 230 VAC cold start.
The converter is designed for an operating temperature range of -10°C to 70°C with derating. Mechanical dimensions are 205.0 mm (length) x 110.0 mm (width) x 50.0 mm (height). Earth leakage current is less than 2 mA at 264 VAC/60 Hz.
The LCL300PS12 provides a nominal output of 12 VDC at 25 A, with a total output power of 300W.
The input voltage range is 85 to 264 VAC at 47 to 63 Hz.
The operating temperature range is -10°C to 70°C with derating.
The dimensions are 205.0 mm (length) x 110.0 mm (width) x 50.0 mm (height).
Typical efficiency is 88%.
