| Category | |
| Manufacturer Name | |
| Applications | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Input Frequency | |
| Input Voltage | |
| Isolation | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Overload Protection | |
| Power (Watts) | |
| SVHC Present | |
| Storage Temperature | |
| Type | |
| Voltage | |
| Width |

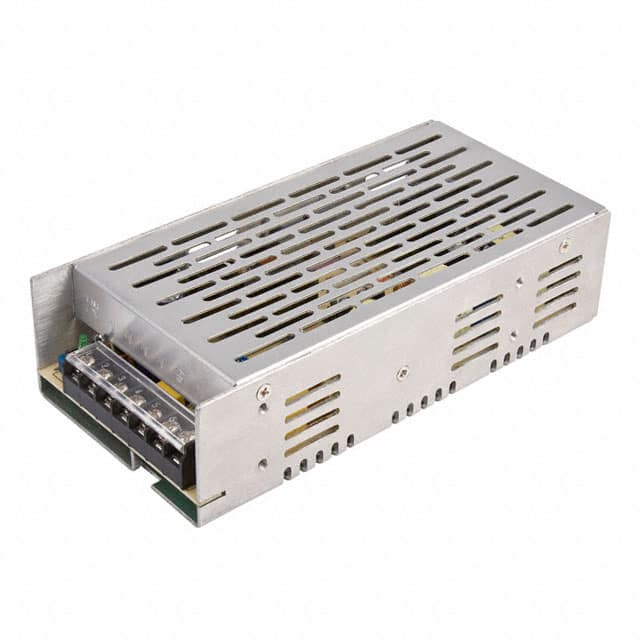

The XP Power LCL150PS15 is a single-output AC/DC power supply designed for industrial applications. It offers a 15V output voltage and a maximum power of 150W. The unit supports a wide input voltage range of 85-264 VAC, making it suitable for global use.
Key electrical specifications include an efficiency of 85% minimum at full load and 230 VAC, line regulation of ±0.5% max, and load regulation of ±1% max. It provides overvoltage protection at 115-135% and overload protection at 110-130% of rated output power. The converter also features short circuit protection with auto-recovery.
Designed for robust operation, the LCL150PS15 operates within a temperature range of -10°C to +70°C, with derating applied above 50°C. It is convection-cooled and features chassis mounting for easy integration into systems. The dimensions are 192.0mm x 95.0mm x 64.5mm.
This power supply is suitable for ITE (Commercial) applications and meets various EMC and safety standards, including EN61000-3-2 class A for harmonic currents and EN55022 for emissions.
The output voltage is 15V.
The maximum power output is 150W.
The input voltage range is 85-264 VAC.
The operating temperature range is -10°C to +70°C.
It is chassis mounted.
The RoHS status is RoHS3 Compliant.
The MSL is 1 Unlimited.
