| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
47 pcs
|
47 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Insulation | |
| Lead Spacing | |
| Lead Style | |
| Length | |
| Mounting Type | |
| SVHC Present | |
| Stud | |
| Tab Thickness | |
| Terminal Style | |
| Terminal Type | |
| Termination | |
| Termination Style | |
| Width | |
| Wire Gauge |

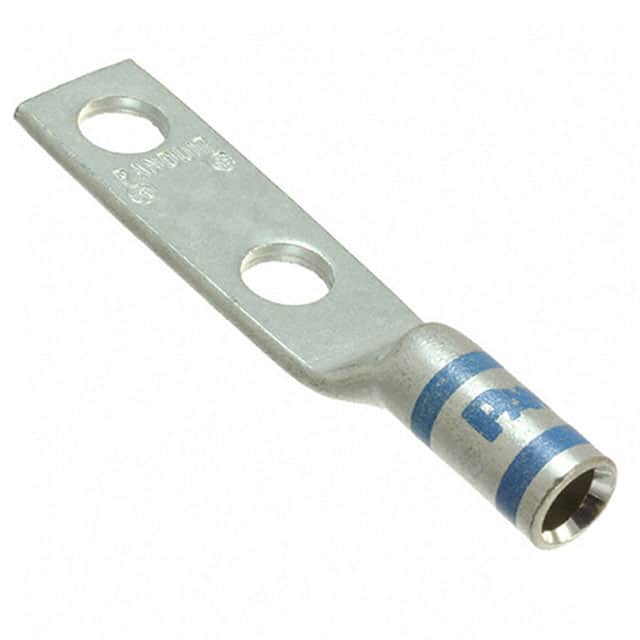

The Panduit LCDX6-14B-L is a non-insulated rectangular tongue terminal designed for 6 AWG conductors. It features a 1/4 inch stud hole with two-hole configuration and 0.75 inch spacing. The terminal has a standard barrel with window lug, and termination is achieved via crimping. Body dimensions are 51.56 mm length, 12.19 mm width, and 2.03 mm thickness. Wire strip length is 9/16 inch.
This terminal is rated for flexible conductor classes G, H, I, K, M, and diesel locomotive applications, making it suitable for demanding power distribution environments. The free hanging in-line mounting and crimp barrel design provide secure, reliable connections in panel wiring and heavy-duty cable assemblies.
The terminal is color-coded blue for 6 AWG identification and is supplied in standard packages of 50 pieces. It is RoHS3 compliant (unverified) and carries MSL 1 rating (unverified). Cross-references DigiKey part 298-11850-ND.
| Qty | Low | High |
|---|---|---|
| 1+ | $7.67 | $7.67 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
6 AWG.
1/4 inch stud hole with two-hole configuration and 0.75 inch spacing.
No, it is non-insulated.
Crimp, barrel termination with a standard barrel and window lug.
Free hanging (in-line).
50 pieces.
