| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3 pcs
|
3 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Insulation | |
| Mounting Type | |
| SVHC Present | |
| Stud | |
| Tab Thickness | |
| Terminal Style | |
| Terminal Type | |
| Termination | |
| Termination Style | |
| Width | |
| Wire Gauge |

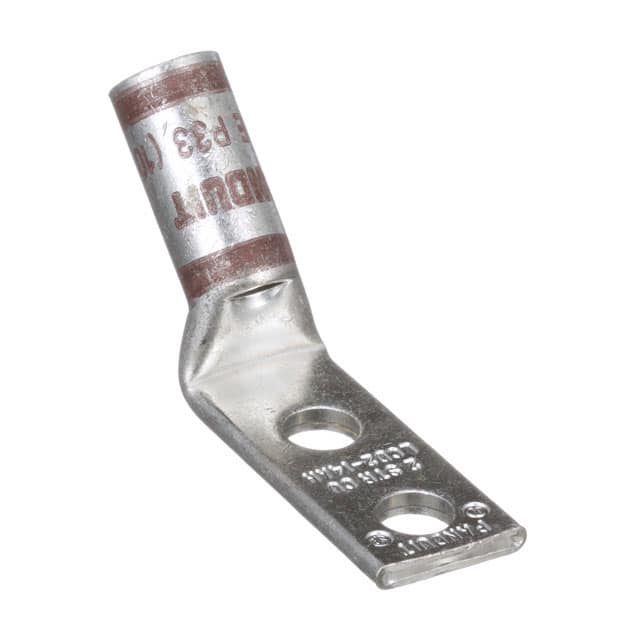

The Panduit LCD2-14AH-Q is a rectangular tongue terminal designed for use with 2 AWG stranded copper conductors. It features a two-stud-hole configuration with a 1/4 in stud size and a 45° angle mounting style for free-hanging in-line applications. The terminal is non-insulated and uses a crimp barrel termination method. It has a tab thickness of 2.54 mm (0.100") and a width of 15.24 mm (0.600"). The barrel is color-coded brown for easy identification. This terminal is part of Panduit's LCD-H series and is tin-plated to inhibit corrosion. It is UL Listed and CSA Certified for use with Panduit and specified competitor crimping tools and dies.
| Qty | Low | High |
|---|---|---|
| 1+ | $12.75 | $12.75 |
| 10+ | $11.86 | $11.86 |
| 25+ | $11.27 | $11.27 |
| 100+ | $11.02 | $11.02 |
| 250+ | $10.71 | $10.71 |
| 500+ | $10.47 | $10.47 |
| 1,000+ | $10.25 | $10.25 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The LCD2-14AH-Q is rated for 2 AWG wire.
The stud size is 1/4 in.
It uses crimp barrel termination.
No, it is non-insulated.
Free hanging (in-line) with a 45° angle.
The tab thickness is 2.54 mm (0.100").
The barrel is brown.
