| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
40 pcs
|
40 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Insulation | |
| Length | |
| Mounting Type | |
| Stud | |
| Tab Thickness | |
| Terminal Style | |
| Terminal Type | |
| Termination | |
| Termination Style | |
| Width | |
| Wire Gauge |

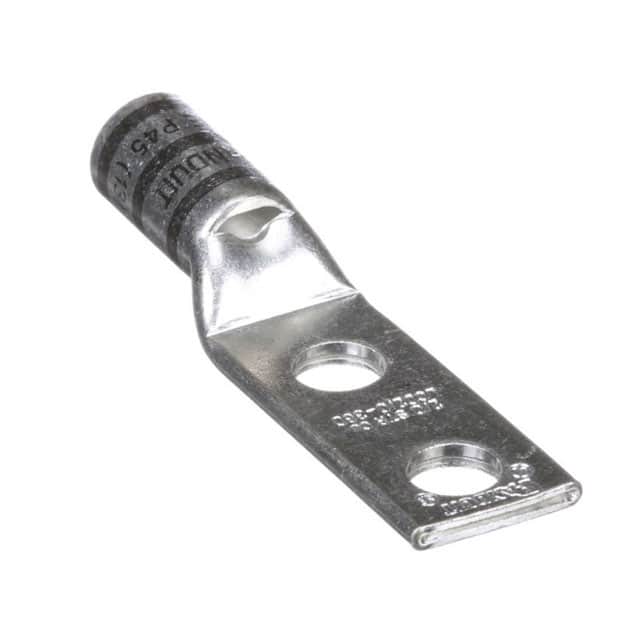

The Panduit LCD2/0-38D-X is a non-insulated rectangular tongue terminal designed for 2/0 AWG stranded copper conductors. It features a two-hole stud configuration with 3/8 in stud size and is terminated via a crimp barrel. The terminal is free hanging (in-line) and includes an inspection window for visual assurance of full conductor insertion. Key dimensions include a width of 21.59mm, length of 79.76mm, and tab thickness of 3.30mm. The barrel is color-coded and marked with die index numbers for proper crimp tool selection. The terminal is tin-plated to inhibit corrosion and is rated for continuous operation at 90°C when crimped with specified tools. Compliance data indicates RoHS3 compliant, MSL 1, and REACH unaffected, though these are unverified.
| Qty | Low | High |
|---|---|---|
| 1+ | $13.77 | $13.77 |
| 10+ | $12.19 | $12.19 |
| 30+ | $11.93 | $11.93 |
| 100+ | $11.67 | $11.67 |
| 250+ | $11.33 | $11.33 |
| 500+ | $11.09 | $11.09 |
| 1,000+ | $10.85 | $10.85 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It accepts 2/0 AWG stranded copper conductors.
3/8 inch stud hole.
Rectangular tongue terminal with two stud holes.
Free hanging (in-line) mounting.
Crimp, barrel termination.
No, it is non-insulated.
Width 21.59mm, length 79.76mm, and tab thickness 3.30mm.
