| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
665 pcs
|
665 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| ABS Approval | |
| CSA Certification | |
| Color | |
| Conductor Type | |
| Insulation | |
| Lead Spacing | |
| Lead Style | |
| Length | |
| Mounting Type | |
| NEBS Level | |
| Operating Temperature | |
| Plating Material | |
| Standard Package Quantity | |
| Stud | |
| Stud Hole Spacing | |
| Tab Thickness | |
| Terminal Style | |
| Terminal Type | |
| Termination | |
| Termination Style | |
| UL Listing | |
| Voltage Rating | |
| Width | |
| Wire Gauge |

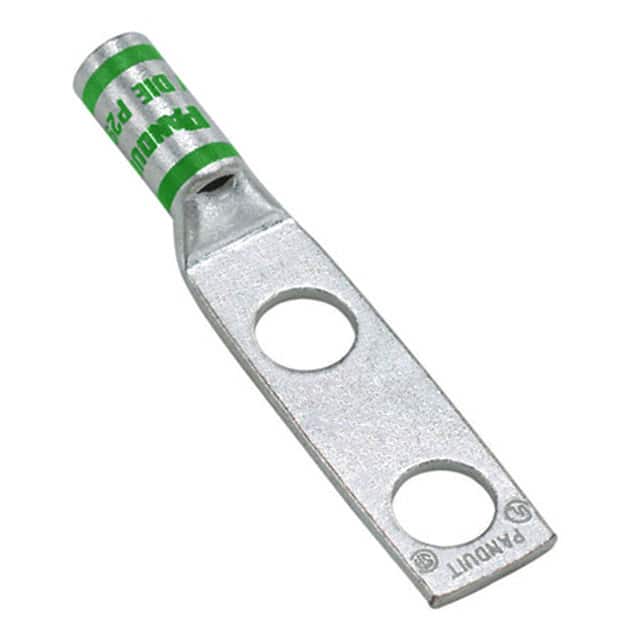

The Panduit LCD1-14A-E is a two-hole grounding lug terminal designed for use with 1 AWG stranded copper conductors. It belongs to Panduit's LCD series of standard barrel with window lugs, providing a reliable connection for grounding applications.
This terminal accepts a 1/4 inch stud and features two stud holes with a spacing of 16.0 mm (0.63 inches). It is non-insulated with a tin-plated finish to resist corrosion. The crimp barrel termination ensures a secure connection, and an inspection window allows visual verification of full conductor insertion. The lug is rated for up to 35 kV and a maximum operating temperature of 90°C when crimped with specified tools.
Compliance-wise, the LCD1-14A-E is UL Listed and CSA Certified to 35 kV. It also meets NEBS Level 3 requirements and is American Bureau of Shipping (ABS) approved. It is suitable for use in power distribution, grounding, and bonding applications where high voltage and reliability are required.
The terminal is designed for free hanging (in-line) mounting. It is available in standard packages of 50 pieces. The green color-coded barrel aids in identification.
| Qty | Low | High |
|---|---|---|
| 1+ | $11.80 | $11.80 |
| 10+ | $10.98 | $10.98 |
| 20+ | $10.43 | $10.43 |
| 100+ | $9.91 | $9.91 |
| 500+ | $9.69 | $9.69 |
| 1,000+ | $9.48 | $9.48 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The LCD1-14A-E is rated for 35 kV (UL Listed and CSA Certified).
The mounting type is Free Hanging (In-Line).
It accepts 1 AWG stranded copper conductors.
It fits a 1/4 inch stud.
No, it is non-insulated.
The barrel is green.
It is rated for 90°C when crimped with specified tools.
