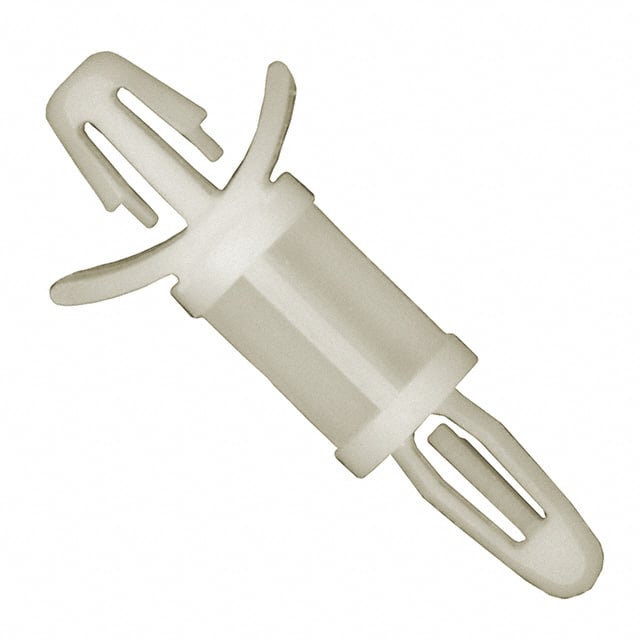

LCBS-8-01 The Essentra Components LCBS-8-01 is a board support with snap lock mounting and a nylon construction. It features a winged design and measures 31.30mm in length.
Mfr Part #:

LCBS-8-01

Available from 1 distributors
Mfr Name: Essentra Components
Essentra Components
The Essentra Components LCBS-8-01 is a board support with snap lock mounting and a nylon construction. It features a winged design and measures 31.30mm in length.
✓ Total Stock: 661 pcs
$ Price Range: $0.99

LCBS-8-01 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Braun Electronic Components ✓
Non-Authorised Inventory information
661 pcs
On Request
661 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

LCBS-8-01 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Between Board Height
Features
Holding Type
Length
Material
Mounting Hole Diameter
Mounting Panel Thickness
Mounting Type
Storage Temperature
Support Hole Diameter
Support Panel Thickness
Tape & Reel
View Similar Products (0)

LCBS-8-01 Description

Short technical summary and product information.

The Essentra Components LCBS-8-01 is a board support designed for secure mounting applications. Constructed from durable nylon, it features a snap lock mounting type and a winged design for enhanced stability.



Key mechanical specifications include a length of 31.30mm (1.232"), a between board height of 12.70mm (0.500"), and support hole diameter of 3.99mm (0.157"). The support panel thickness ranges from 0.79mm to 1.98mm (0.031" to 0.078"), with a mounting hole diameter of 4.75mm (0.187").



This board support is suitable for applications requiring reliable board spacing and support. Its snap lock mechanism ensures easy installation and a secure fit. The nylon material provides good electrical insulation and resistance to environmental factors.

LCBS-8-01 Quick Information

Product Type: Board Support
Canonical Name: Essentra Components LCBS-8-01 Board Support

LCBS-8-01 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

LCBS-8-01 Estimated Pricing

Qty Low High
1+ $0.99 $0.99

Estimated market price range - modelled values for guidance only, not live distributor offers.

LCBS-8-01 Features

  • Snap lock mounting for secure installation.
  • Durable nylon construction for reliability.
  • Winged design enhances stability.
  • 31.30mm length for versatile application.
  • Supports 12.70mm between board height.

LCBS-8-01 Applications

  • Ideal for PCB mounting applications.
  • Provides secure board spacing.
  • Suitable for electronic enclosures.
  • Used in various hardware assemblies.
  • Ensures stable component support.

LCBS-8-01 FAQs

6 frequently asked questions generated from this part’s specifications.
What is the mounting type of the LCBS-8-01 board support?

The LCBS-8-01 board support features snap lock mounting.

What material is the LCBS-8-01 board support made from?

The LCBS-8-01 board support is made from nylon.

What is the length of the LCBS-8-01 board support?

The length of the LCBS-8-01 board support is 31.30mm (1.232").

What is the between board height for the LCBS-8-01?

The between board height for the LCBS-8-01 is 12.70mm (0.500").

What is the RoHS status of the LCBS-8-01?

The LCBS-8-01 is RoHS3 Compliant.

What is the Moisture Sensitivity Level (MSL) for the LCBS-8-01?

The Moisture Sensitivity Level (MSL) for the LCBS-8-01 is 1 Unlimited.
