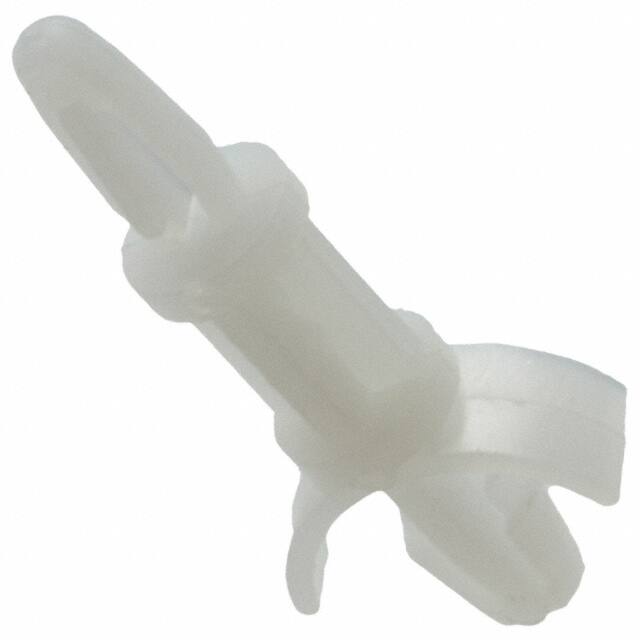

LCBS-2-8-01 The Essentra Components LCBS-2-8-01 is a nylon board support with snap lock mounting. It offers a 1/2" height and RoHS3 compliance.
Mfr Part #:

LCBS-2-8-01

Available from 1 distributors
Mfr Name: Essentra Components
Essentra Components
The Essentra Components LCBS-2-8-01 is a nylon board support with snap lock mounting. It offers a 1/2" height and RoHS3 compliance.
✓ Total Stock: 9,000 pcs
$ Price Range: $0.99

LCBS-2-8-01 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Components Technology Group, Inc. ✓
Non-Authorised Inventory information
9,000 pcs
On Request
9000 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

LCBS-2-8-01 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Between Board Height
Features
Holding Type
Length
Material
Mounting Hole Diameter
Mounting Panel Thickness
Mounting Type
Support Hole Diameter
Support Panel Thickness
View Similar Products (0)

LCBS-2-8-01 Description

Short technical summary and product information.

The Essentra Components LCBS-2-8-01 is a board support designed for secure mounting of PCBs. Constructed from durable nylon, it features a snap lock mounting type for easy installation.



Key mechanical specifications include a length of 33.10mm (1.303"), a support hole diameter of 0.157" (3.99mm), and a between-board height of 0.500" (12.70mm) or 1/2". The support panel thickness ranges from 0.062" (1.57mm) to 0.078"-0.141" (1.98mm-3.58mm).



This component is RoHS3 compliant and has a Moisture Sensitivity Level (MSL) of 1, indicating unlimited shelf life under standard conditions. The REACH status is unaffected.



Ideal for applications requiring reliable board spacing and support, the LCBS-2-8-01 offers a winged feature for enhanced stability. Its snap lock holding type ensures a secure fit within mounting holes.

LCBS-2-8-01 Quick Information

Product Type: Board Support
Canonical Name: LCBS-2-8-01 Snap Lock Board Support
Subcategory: Board Support

LCBS-2-8-01 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

LCBS-2-8-01 Estimated Pricing

Qty Low High
1+ $0.99 $0.99

Estimated market price range - modelled values for guidance only, not live distributor offers.

LCBS-2-8-01 Features

  • Nylon construction for durability.
  • Snap lock mounting for easy installation.
  • Provides 1/2" board height.
  • RoHS3 compliant for environmental standards.
  • MSL 1 for extended shelf life.

LCBS-2-8-01 Applications

  • Secures printed circuit boards.
  • Provides reliable board spacing.
  • Used in electronic assemblies.
  • Facilitates component mounting.

LCBS-2-8-01 FAQs

5 frequently asked questions generated from this part’s specifications.
What is the material of the LCBS-2-8-01 board support?

The material is Nylon.

What is the mounting type for this board support?

The mounting type is Snap Lock.

What is the between board height?

The between board height is 0.500" (12.70mm) or 1/2".

What is the RoHS status?

The RoHS status is RoHS3 Compliant.

What is the Moisture Sensitivity Level (MSL)?

The Moisture Sensitivity Level is 1 Unlimited.
