| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4 pcs
|
4 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Between Board Height | |
| Features | |
| Holding Type | |
| Length | |
| Material | |
| Mounting Hole Diameter | |
| Mounting Panel Thickness | |
| Mounting Type | |
| Storage Temperature | |
| Support Hole Diameter | |
| Support Panel Thickness | |
| Tape & Reel |

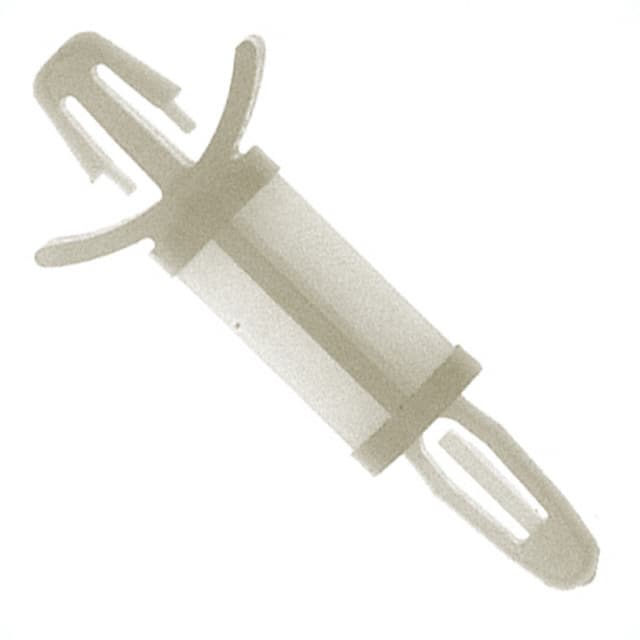

The Essentra Components LCBS-10-01 is a board support designed for secure mounting of PCBs. Constructed from durable nylon, it features a snap lock mounting type for easy installation.
This board support has a between board height of 0.625 inches (5/8"), a support hole diameter of 0.157 inches (3.99mm), and a support panel thickness of 0.062 inches (1/16"). The mounting hole diameter is 0.187 inches (3/16"), and it accommodates mounting panel thicknesses from 0.031 to 0.078 inches.
With a length of 34.50mm (1.358"), the LCBS-10-01 is suitable for various electronic assemblies. It is RoHS3 compliant and has a Moisture Sensitivity Level (MSL) of 1, indicating unlimited shelf life under recommended conditions.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The length of the LCBS-10-01 is 34.50mm (1.358 inches).
The LCBS-10-01 is made of nylon.
The support hole diameter is 3.99mm (0.157 inches).
The mounting hole diameter is 4.75mm (0.187 inches).
The support panel thickness ranges from 0.79mm to 1.98mm.
It uses a snap lock mounting type.
It is RoHS3 compliant.
