| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
20 pcs
|
20 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Barrel Die Index | |
| CSA Certified | |
| Color | |
| Contact Finish | |
| Contact Material | |
| Insulation | |
| Length | |
| Mounting Type | |
| Stud | |
| Tab Thickness | |
| Terminal Style | |
| Terminal Type | |
| Termination | |
| UL Listed | |
| UL Temperature Rating | |
| Width | |
| Wire Gauge | |
| Wire Strip Length | |
| Wire Type |

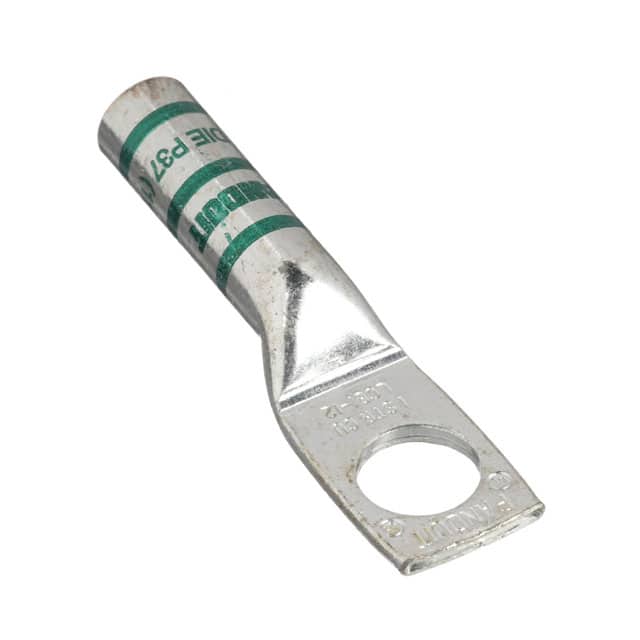

The Panduit LCB1-56-E is a one-hole, long-barrel copper lug designed for terminating 1 AWG stranded copper wire (Class B or C). This rectangular tongue terminal features a crimp barrel termination with a wire strip length of 1-7/16 inches (36.51 mm) and is suitable for free-hanging, in-line mounting with a 5/16 stud size.
The contact is made from high conductivity seamless copper tube with an electro-tin finish, ensuring reliable electrical performance and corrosion resistance. The body is non-insulated and color-coded green per Panduit's barrel marking scheme. The terminal has a tab thickness of 0.110 inches (2.79 mm) and an overall length of 2.500 inches (63.50 mm).
This terminal is UL listed for applications up to 35 kV and CSA certified. It is rated for continuous operation at 90 °C. The UL listing includes voltage stress relief instructions for applications above 2000 volts. The terminal is RoHS3 compliant and REACH unaffected, though these compliance statuses are unverified.
Design context: This lug is used in power distribution, industrial control panels, and high-voltage cable terminations where a secure crimp connection is required. The single stud hole design accommodates a 5/16-inch bolt for reliable mechanical and electrical attachment.
| Qty | Low | High |
|---|---|---|
| 1+ | $9.67 | $9.67 |
| 10+ | $8.88 | $8.88 |
| 20+ | $8.68 | $8.68 |
| 100+ | $8.25 | $8.25 |
| 500+ | $8.07 | $8.07 |
| 1,000+ | $7.90 | $7.90 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The LCB1-56-E supports 1 AWG stranded copper wire (Class B or C).
The terminal is designed for a 5/16 inch stud.
No, this terminal is non-insulated.
The mounting type is Free Hanging (In-Line).
It is UL listed for applications up to 35kV and CSA certified.
The terminal is rated for continuous operation at 90°C (UL temperature rating).
The contact is made of high conductivity seamless copper tube with an electro-tin finish.
