| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,880 pcs
|
1880 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| ABS Approved | |
| Barrel Width | |
| CSA Certified | |
| Color | |
| Conductor Type | |
| Contact Finish | |
| Contact Material | |
| Die Index (@ Burndy) | |
| Die Index (@ T&B) | |
| Die Index (Panduit) | |
| Inspection Window | |
| Insulation | |
| Lead Style | |
| Length | |
| Mounting Type | |
| NEBS Level 3 | |
| Operating Temperature | |
| Package Quantity | |
| Packaging Type | |
| Standard Package Quantity | |
| Stud | |
| Tab Thickness | |
| Terminal Style | |
| Terminal Type | |
| Termination | |
| Termination Style | |
| UL Listed | |
| Voltage Rating (max) | |
| Width | |
| Wire Gauge | |
| Wire Strip Length |

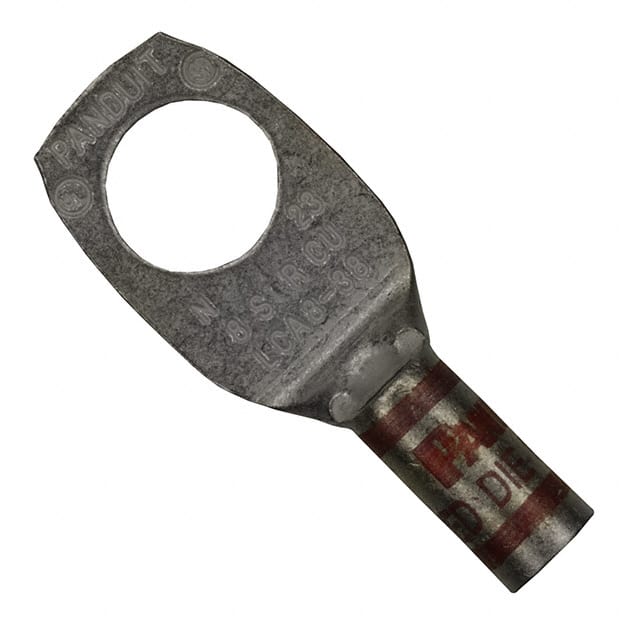

The Panduit LCA8-38-L is a one-hole, standard barrel grounding lug designed for 8 AWG stranded copper conductors. It features a 3/8 inch stud hole and a crimp barrel termination with an inspection window to visually confirm full conductor insertion. The lug is tin-plated to inhibit corrosion and is color-coded red for easy identification.
Electrical ratings include a maximum voltage of 35 kV and a maximum operating temperature of 90°C when crimped with Panduit or specified competitor tools and dies. The die index numbers are P21 (Panduit), 49 (Burndy), and 21 (T&B) for proper crimp selection.
Compliance includes UL Listed, CSA Certified, NEBS Level 3 tested, and ABS Approved. The part is supplied in bulk packaging with a standard package quantity of 50 pieces. The wire strip length is 15.88 mm (5/8 in).
| Qty | Low | High |
|---|---|---|
| 1+ | $2.27 | $2.27 |
| 10+ | $2.06 | $2.06 |
| 50+ | $2.01 | $2.01 |
| 100+ | $1.96 | $1.96 |
| 250+ | $1.92 | $1.92 |
| 500+ | $1.87 | $1.87 |
| 1,000+ | $1.82 | $1.82 |
| 2,500+ | $1.80 | $1.80 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
8 AWG stranded copper wire.
3/8 inch stud.
35 kV maximum when crimped with Panduit and specified competitor tools and dies.
90°C when crimped with specified tools.
Crimp barrel termination.
Yes, UL Listed and CSA Certified.
50 pieces per package.
