| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
274 pcs
|
274 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| ABS Approved | |
| Burndy Die Index | |
| Color | |
| Industrial Grade | |
| Insulation | |
| Lead Style | |
| Length | |
| Mounting Type | |
| NEBS Level | |
| Operating Temperature | |
| Panduit Die Index | |
| Plating | |
| Safety Listing | |
| Standard Package Quantity | |
| Stud | |
| T&B Die Index | |
| Tab Thickness | |
| Terminal Style | |
| Terminal Type | |
| Termination | |
| Voltage Rating | |
| Width | |
| Wire Gauge | |
| Wire Strip Length |

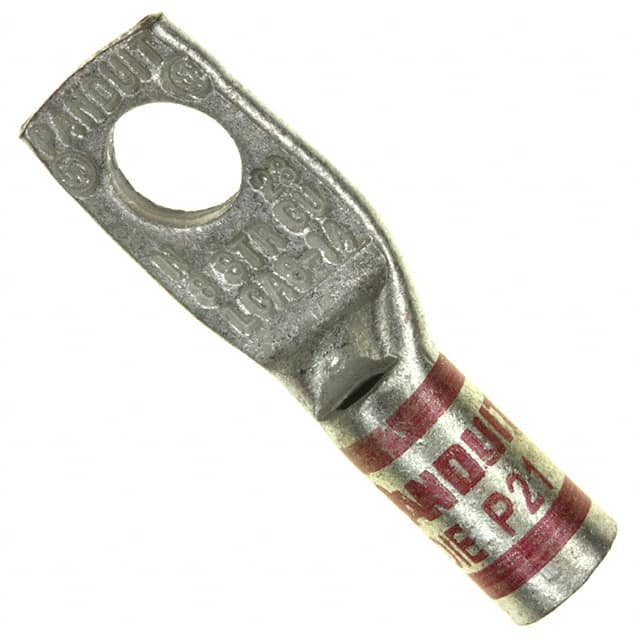

The Panduit LCA8-14-L is a one-hole, standard barrel lug terminal designed for 8 AWG stranded copper conductors. It features a 1/4 stud hole and is non-insulated with tin plating to inhibit corrosion. The terminal includes an inspection window for visual confirmation of full conductor insertion. It is color-coded red and has a wire strip length of 5/8 inch. The terminal is UL Listed and CSA Certified to 35 kV and temperature rated to 90°C when crimped with Panduit and specified competitor crimping tools and dies. It also meets NEBS Level 3 and is American Bureau of Shipping Approved. The terminal uses a crimp barrel termination and is designed for free hanging (in-line) mounting. Standard package quantity is 50 pieces. Dimensions: width 12.19mm, length 34.04mm, tab thickness 1.78mm. Applicable die indices: Panduit P21, Burndy 49, T&B 21.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.69 | $2.69 |
| 10+ | $2.52 | $2.52 |
| 50+ | $2.45 | $2.45 |
| 100+ | $2.40 | $2.40 |
| 250+ | $2.34 | $2.34 |
| 500+ | $2.29 | $2.29 |
| 1,000+ | $2.24 | $2.24 |
| 2,500+ | $2.18 | $2.18 |
| 5,000+ | $2.17 | $2.17 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
35 kV when properly crimped with specified tools.
8 AWG stranded copper.
1/4 inch.
Free Hanging (In-Line).
90°C when crimped with Panduit and specified competitor tools.
Yes, UL Listed and CSA Certified to 35 kV.
Yes, tested to NEBS Level 3.
