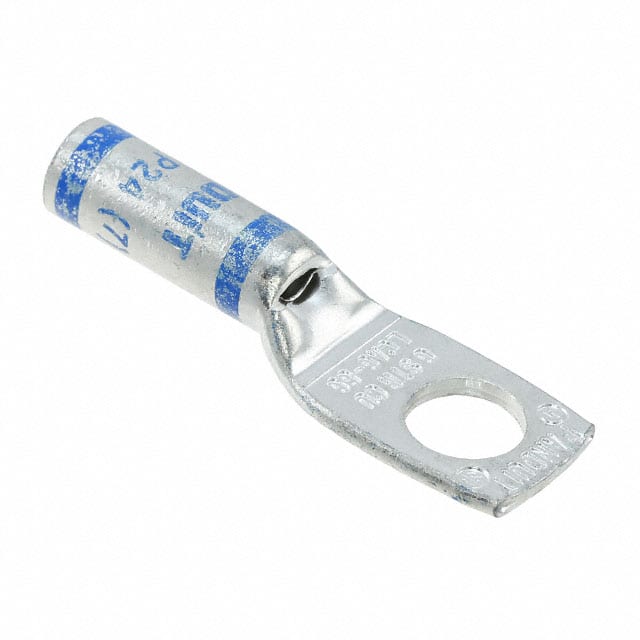

The Panduit LCA6-56-L is a rectangular tongue terminal designed for use with stranded copper conductors up to 6 AWG. It features a single stud hole of 5/16 inch and a crimp barrel termination with an inspection window to ensure full conductor insertion. The terminal is non-insulated and has a tin-plated finish to inhibit corrosion. It is color-coded blue and has a width of 14.22mm (0.560 inches) and a length of 43.94mm (1.730 inches). The tab thickness is 0.070 inches (1.78mm).
This terminal is part of the Panduit LCA series and is UL Listed and CSA Certified for applications up to 35 kV (when properly crimped) with a temperature rating of 90°C. It is designed for use with Panduit and competitor crimping tools and dies, with die index numbers P24 (Panduit), 7 (Burndy), and 24 (T&B). The wire strip length is 7/8 inch.
The terminal is free hanging (in-line) mounting type and comes in a standard package of 50 pieces. It is suitable for power distribution, grounding, and other high-current applications. The inspection window allows visual confirmation of wire insertion, enhancing reliability.
| Qty | Low | High |
|---|---|---|
| 1+ | $3.05 | $3.05 |
| 10+ | $2.76 | $2.76 |
| 50+ | $2.69 | $2.69 |
| 100+ | $2.63 | $2.63 |
| 250+ | $2.52 | $2.52 |
| 500+ | $2.44 | $2.44 |
| 1,000+ | $2.20 | $2.20 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
Free Hanging (In-Line).
6 AWG stranded copper conductor.
5/16 inch stud.
Crimp, barrel type.
No, it is non-insulated.
UL Listed and CSA Certified for up to 35 KV when properly crimped.
50 pieces.
