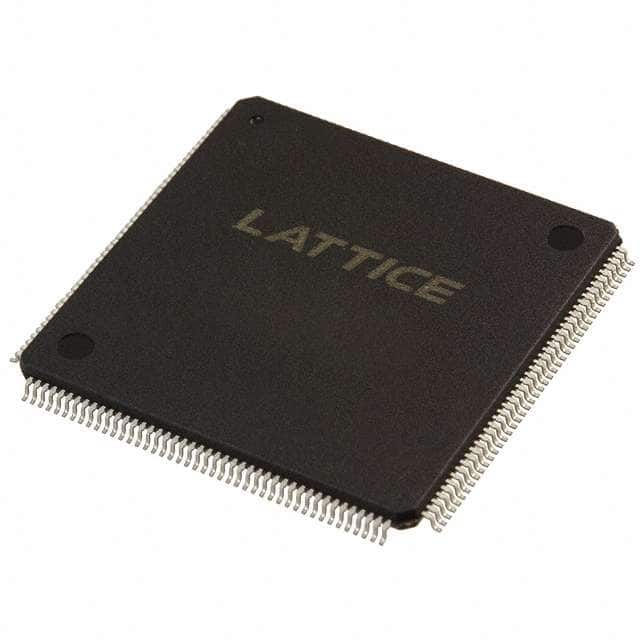

LC4512V-75TN176C The Lattice LC4512V-75TN176C is a CPLD with 512 macrocells and a maximum operating frequency of 322 MHz. It operates at a 3.3V supply voltage and is available in a 176-TQFP package.
Mfr Part #:

LC4512V-75TN176C

Available from 2 distributors
Mfr Name: Lattice Semiconductor Corporation
Lattice Semiconductor Corporation
The Lattice LC4512V-75TN176C is a CPLD with 512 macrocells and a maximum operating frequency of 322 MHz. It operates at a 3.3V supply voltage and is available in a 176-TQFP package.
✓ Total Stock: 5,906 pcs

LC4512V-75TN176C Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Components Technology Group, Inc. ✓
Non-Authorised Inventory information
3,326 pcs
On Request
3326 pcs On Request 1 On Request On Request On Request On Request On Request
Xingangxin ✓
Non-Authorised Inventory information
2,580 pcs
On Request
2580 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

LC4512V-75TN176C Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Delay Time tpd(1) Max
Lead Spacing
Mounting Style
Mounting Type
Number of I
Number of Logic Elements
Number of Macrocells
Operating Temperature
Programmable Type
Supplier Device Package
Voltage Supply
View Similar Products (0)

LC4512V-75TN176C Description

Short technical summary and product information.

The Lattice Semiconductor LC4512V-75TN176C is a high-performance CPLD from the ispMACH 4512 series, offering 512 macrocells and a maximum operating frequency of 322 MHz. This device features a propagation delay of 7.5 ns and supports a supply voltage range of 3V to 3.6V.



Designed for ease of integration, the LC4512V-75TN176C is suitable for power-sensitive consumer applications. It operates with 3.3V LVCMOS I/O and is 5V tolerant, making it compatible with various interfaces. The device supports In-System Programmable (ISP) functionality via an IEEE 1532 compliant interface.



This CPLD is supplied in a 176-TQFP (24x24) surface mount package. It operates within a junction temperature range of 0°C to 90°C. The device also offers features like open-drain capability and programmable output slew rate, enhancing its design flexibility.

LC4512V-75TN176C Quick Information

Product Type: CPLD - Complex Programmable Logic Devices
Series: ispMACH 4512
Canonical Name: Lattice ispMACH 4512 Series CPLD
Subcategory: Complex Programmable Logic Devices

LC4512V-75TN176C Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

LC4512V-75TN176C Features

  • 512 macrocells for complex logic.
  • Maximum operating frequency of 322 MHz.
  • Fast 7.5 ns propagation delay.
  • 3.3V supply voltage operation.
  • 176-TQFP surface mount package.

LC4512V-75TN176C Applications

  • Ideal for power-sensitive applications.
  • Suitable for consumer electronics.
  • Supports various I/O standards.
  • Enables in-system programmability.

LC4512V-75TN176C FAQs

6 frequently asked questions generated from this part’s specifications.
What is the maximum operating frequency of the LC4512V-75TN176C?

The maximum operating frequency is 322 MHz.

What is the propagation delay for the LC4512V-75TN176C?

The maximum propagation delay is 7.5 ns.

How many macrocells does the LC4512V-75TN176C have?

It has 512 macrocells.

What is the operating supply voltage range?

The supply voltage range is 3V to 3.6V.

What is the operating temperature range?

The operating temperature range is 0°C to 90°C (TJ).

What package type is the LC4512V-75TN176C supplied in?

It is supplied in a 176-TQFP package.
