| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
90 pcs
|
90 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Delay Time | |
| Failure Rate | |
| Lead Style | |
| Mounting Type | |
| Number of I/O | |
| Operating Temperature | |
| Programmable Type | |
| SVHC Present |
The Lattice Semiconductor LC4384V-75F256I is an In System Programmable CPLD from the ispMACH® 4000V series. This device offers 384 macrocells and 24 logic elements/blocks, providing significant logic capacity for embedded applications.
Key electrical specifications include an internal supply voltage range of 3V to 3.6V and a maximum propagation delay of 5 ns, enabling high-speed operation. It features 128 general-purpose I/O pins for flexible interfacing.

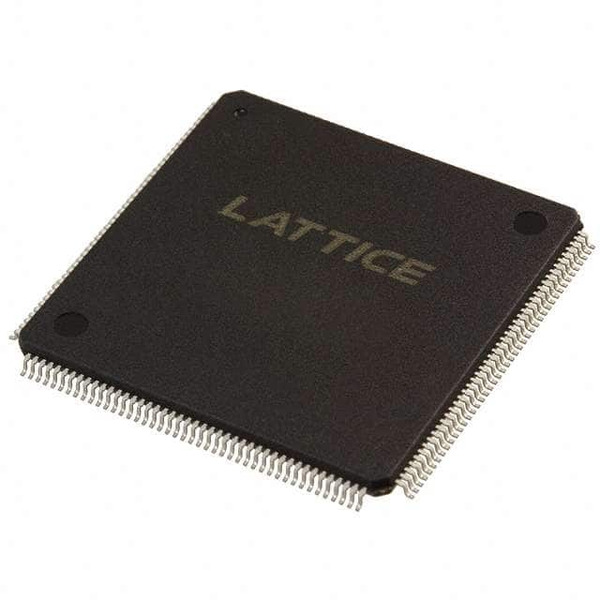

The CPLD is housed in a 176-TQFP (24x24 mm) surface-mount package. It operates reliably within a temperature range of -40°C to 105°C (junction temperature).
This CPLD is suitable for various applications requiring custom digital logic functions, such as telecommunications, industrial control, and networking equipment.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.50 | $0.50 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum propagation delay is 5 ns.
The internal supply voltage ranges from 3V to 3.6V.
It has 384 macrocells.
The operating temperature range is -40°C to 105°C (junction).
It is in a 176-TQFP (24x24 mm) package.
The RoHS status is Non-compliant.
The Moisture Sensitivity Level is 3 (168 Hours).
