| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
900 pcs
|
900 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Delay Time tpd(1) Max | |
| Height | |
| Length | |
| Mounting Type | |
| Number of I | |
| Number of Logic Elements | |
| Number of Macrocells | |
| Operating Temperature | |
| Programmable Type | |
| Supplier Device Package | |
| Voltage Supply |
The Lattice Semiconductor Corporation LC4128ZE-7UMN132C is a high-performance, ultra-low power CPLD from the ispMACH 4000ZE family. This device offers 128 macrocells and supports an operating supply voltage range of 1.7V to 1.9V, with a nominal core voltage of 1.8V.
Key electrical characteristics include a maximum operating frequency of 200 MHz (though the datasheet indicates up to 260 MHz for the family) and a maximum propagation delay of 7.5 ns (datasheet indicates 4.4 ns for the family). It provides 96 I/O pins, making it suitable for a wide range of digital logic applications.

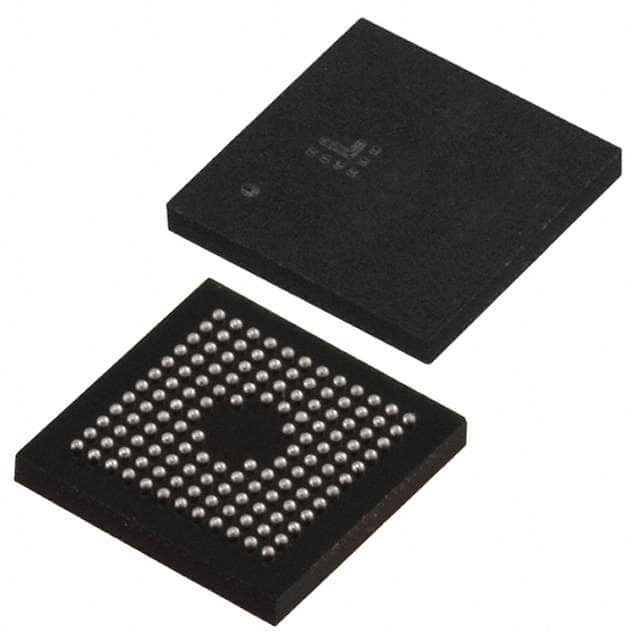

Designed for ease of integration, the LC4128ZE-7UMN132C operates within a commercial temperature range of 0°C to 90°C (junction temperature). It is supplied in a compact 132-UCBGA (6x6mm) package, suitable for surface mounting.
This CPLD is In-System Programmable (ISP) and offers features like low standby current, making it a good choice for power-sensitive consumer applications.
The operating supply voltage for the LC4128ZE-7UMN132C is between 1.7V and 1.9V.
The maximum operating frequency for the LC4128ZE-7UMN132C is 200 MHz.
The maximum propagation delay for the LC4128ZE-7UMN132C is 7.5 ns.
The operating temperature range for the LC4128ZE-7UMN132C is 0°C to 90°C (TJ).
The LC4128ZE-7UMN132C has 128 macrocells.
The LC4128ZE-7UMN132C is supplied in a 132-UCBGA package.
