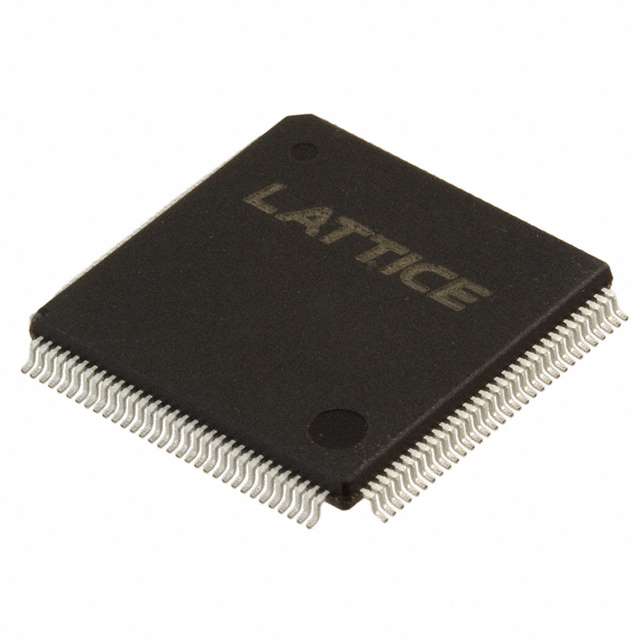

LC4128V-75T128C The Lattice Semiconductor LC4128V-75T128C is a 128-macrocell CPLD featuring a 7.5ns propagation delay and 3.3V supply. It is available in a 128-TQFP surface mount package.
Mfr Part #:

LC4128V-75T128C

Available from 2 distributors
Mfr Name: Lattice Semiconductor Corporation
Lattice Semiconductor Corporation
The Lattice Semiconductor LC4128V-75T128C is a 128-macrocell CPLD featuring a 7.5ns propagation delay and 3.3V supply. It is available in a 128-TQFP surface mount package.
✓ Total Stock: 8,097 pcs

LC4128V-75T128C Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Smaxon Electronics ✓
Non-Authorised Inventory information
7,500 pcs
On Request
7500 pcs On Request 1 On Request On Request 0311+ On Request On Request
Hybrid Electronics ✓
Non-Authorised Inventory information
597 pcs
On Request
597 pcs On Request 1 On Request On Request 1011 On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

LC4128V-75T128C Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Delay Time tpd(1) Max
Mounting Type
Number of I
Number of Logic Elements
Number of Macrocells
Operating Temperature
Programmable Type
Propagation Delay
Supplier Device Package
Voltage Supply
View Similar Products (0)

LC4128V-75T128C Description

Short technical summary and product information.

The Lattice Semiconductor LC4128V-75T128C is a high-performance Complex Programmable Logic Device (CPLD) from the ispMACH 4000V/B/C family. It offers 128 macrocells and a maximum operating frequency of 400MHz, with a propagation delay of 7.5ns. The device operates with a supply voltage range of 3V to 3.6V and supports I/O operation with 3.3V, 2.5V, or 1.8V LVCMOS standards.



Designed for ease of integration, this CPLD features enhanced macrocells with individual control signals and multiple global OE controls. It is suitable for power-sensitive consumer applications and supports hot-socketing. The LC4128V-75T128C is provided in a 128-TQFP (14x14) surface mount package, with an operating temperature range of 0°C to 90°C (TJ).



This In-System Programmable (ISP) device is ideal for various digital logic applications requiring flexible and high-speed performance. Its features include 5V tolerant I/O, open-drain capability, and programmable output slew rate, making it a versatile component for embedded systems.

LC4128V-75T128C Quick Information

Product Type: CPLD
Series: ispMACH 4000V/B/C
Canonical Name: Lattice Semiconductor Corporation LC4128V-75T128C CPLD
Subcategory: Complex Programmable Logic Devices

LC4128V-75T128C Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

LC4128V-75T128C Features

  • 128 macrocells for logic implementation.
  • Fast 7.5ns propagation delay.
  • Supports 3.3V, 2.5V, and 1.8V I/O.
  • 128-TQFP surface mount package.
  • In-System Programmable (ISP) capability.

LC4128V-75T128C Applications

  • Digital logic implementation.
  • Power-sensitive consumer applications.
  • Embedded system designs.
  • High-speed interface logic.

LC4128V-75T128C FAQs

5 frequently asked questions generated from this part’s specifications.
What is the maximum operating frequency of the LC4128V-75T128C?

The maximum operating frequency is 400 MHz.

What is the propagation delay for the LC4128V-75T128C?

The propagation delay is 7.5 ns.

What is the supply voltage range for this CPLD?

The supply voltage range is 3V to 3.6V.

What package is the LC4128V-75T128C supplied in?

It is supplied in a 128-TQFP (14x14) package.

What is the operating temperature range?

The operating temperature range is 0°C to 90°C (TJ).
